Functional Targeting for Modern Fare Management

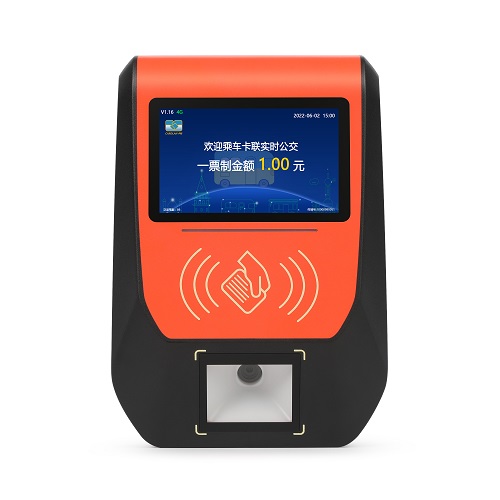

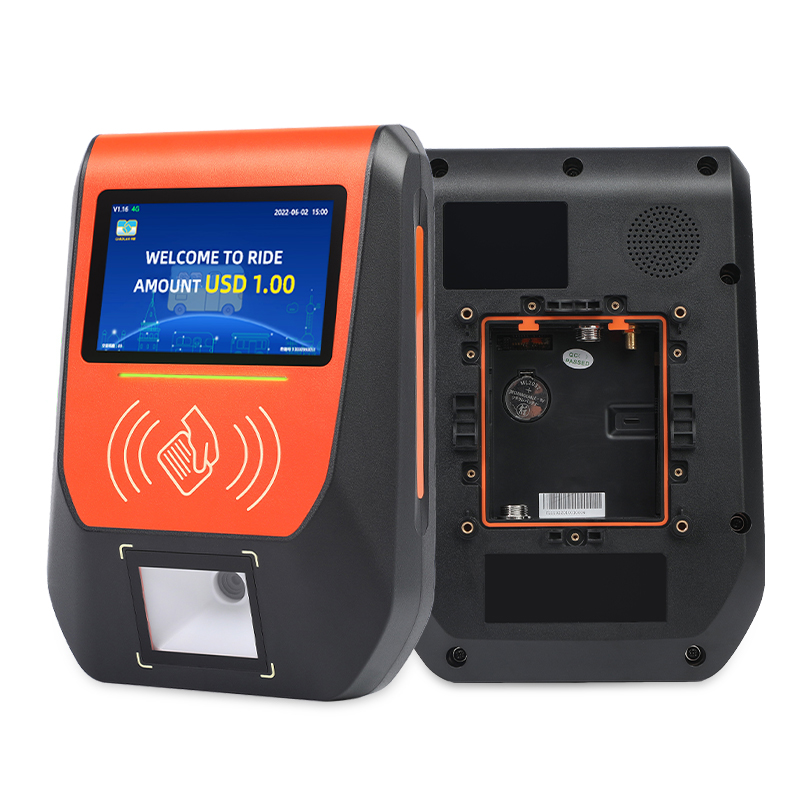

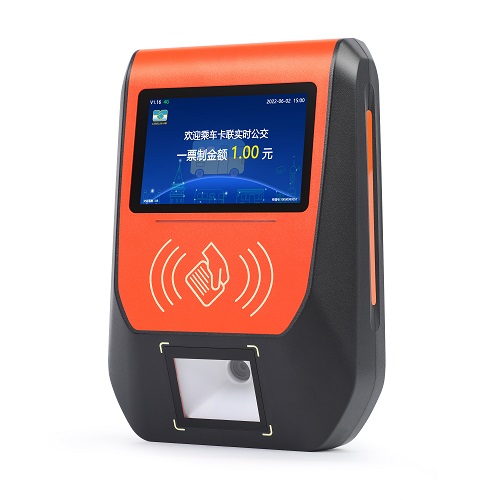

The Cardlan Android-based ticket terminal is engineered for transit operators, municipal agencies, and venue management requiring reliable electronic validation solutions. This device functions as a versatile smart card reader capable of handling diverse RFID card standards including ISO14443 Type A/B and NFC protocols. By incorporating QR code payment scanning, it supports multiple payment methods to accommodate various passenger preferences and streamline fare collection processes. The built-in GPS positioning and wireless data communication options enable precise location tracking and instant data synchronization with backend servers. This solution targets operators aiming to optimize ticket validation speed, improve passenger throughput, and enhance data-driven operational control.
Key Technical Specifications and Integration Capabilities
Equipped with a robust quad-core Cortex-A9 CPU and Android 5.1 OS, this card reader features a 5-inch LCD interface and supports up to 64 GB expandable storage, capable of handling over 2 million transaction records and 200 million blacklist entries. Wireless connectivity includes 3G, 4G (optional), and WiFi, enabling real-time communication for remote monitoring and data uploads. The device’s integrated QR code scanner supports short-range scanning with high accuracy, while voice prompt functionality offers 15 configurable alerts enhancing user interaction. Interfaces such as USB-HOST, RS485, and TTL-232 facilitate seamless integration into existing transit ecosystems. Operating temperature ranges from -25°C to 65°C, ensuring durable performance in diverse environmental conditions.
Industry Applications and Operational Value Realization
This ticket validator is widely applicable in public transportation systems, scenic and amusement parks, corporate shuttle fleets, and school bus security frameworks. Its multi-communication protocols and GPS tracking enable compliance with regulatory mandates for location-aware validation and fare management. Real-time blacklist updates and consumption statistics reduce fare evasion risks and assist operational analytics. The ability to interface with external receipt printers supports on-demand documentation, enhancing passenger service. By integrating voice prompts and contactless payment options, the terminal improves passenger experience while furnishing transit operators with reliable data for system optimization and revenue assurance.
Product Advantages
Design and System Integration Superiority
The Cardlan ticket validator’s modular design supports diverse interface protocols including USB, RS485, and TTL-232, enabling flexible integration with existing ticketing infrastructures and external peripherals like POS58 printers. Its compact physical footprint, measuring 240 x 170 x 74.7 mm, and rugged construction withstand demanding operational environments. The extensible memory architecture accommodates growing data requirements without performance degradation. Integrated GPS and Beidou modules ensure accurate location tracking critical for compliance and fleet management. This adaptable design approach simplifies system upgrades and custom configurations, aligning directly with the complex needs of transport operators and venue managers utilizing advanced card readers and ticket terminals.
High Reliability, User-Centered Performance, and Data Transparency
Performance reliability is ensured through a quad-core CPU and ample RAM, supporting rapid transaction processing and simultaneous multi-protocol reading capabilities including RFID, NFC, and QR code scanning. User experience is enhanced via a 5-inch LCD interface paired with configurable voice prompts, simplifying interaction and reducing transaction errors. The validator handles up to millions of stored transactions and blacklist entries, allowing large-scale deployment without frequent data purging. Wireless communication options provide continuous connectivity for real-time data transfer and remote management. These features collectively improve operational throughput, decrease downtime, and offer actionable consumption insights, delivering substantial value to enterprise-level transit systems.
1. Application
CL-A0618 smart bus validator can support RFID card,with GPS positioning module and QR code scanner,support 4G,WIFI wireless communication etc.Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
2. Functional features
l Support wireless communication,remote connect to server management software to realize real time time-revision,black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection
l Support live voice prompts, supports 15 kinds of voice prompts：such as"student card","employee card"
l Support consumption details and statistics query,according to card No.,time,operator No.,etc.
Parameter
|
Name：
|
Smart Bus Validator
|
|
Operating System：
|
Android5.1
|
|
CPU：
|
Quad-core cortex-a9 main frequency 1.4GHz、integrated GPU Mali-400 MP4
|
|
RAM
|
DDR3 1G（default）
|
|
Memory：
|
eMMC 16G（default）、Max support 64G TF card
|
|
Memory Function
|
|
|
Data Capacity：
|
more than 2 million detailed data for console storage, extensible
|
|
Blacklist：
|
Two hundred million，extensible, more with TF card
|
|
Working Environment
|
|
Working Temperature:
|
-25℃~65℃
|
|
Storage Temperature:
|
-40℃~85℃
|
|
Working Humidity:
|
0-90%（non-condensing）
|
|
Physical Parameter
|
|
|
Dimension:
|
240x170x74.7mm
|
|
Housing material:
|
Engineering plastics
|
|
LCD Display
|
|
Display：
|
5 inch LCD display, 800*480
|
|
Indicator light：
|
Red and green
|
|
Camera
|
|
|
Scanning：
|
Wide angel/QR /customized
|
|
Distance：
|
0CM -15CM
|
|
Voice Prompt
|
|
|
Sound Prompt：
|
Buzzer、Single channel loudspeaker
|
|
Voice Prompt：
|
16KHz,16bit single channel voice prompt
|
|
Power Supply Specification
|
|
Working Voltage：
|
DC 8V-50V
|
|
RFID Function
|
|
Support Type：
|
Can read and write ISO14443 TYPE A\B Electronic tag
|
|
Reading Distance：
|
0~50mm
|
|
Working Frequency：
|
13.56Mhz
|
|
Card Capacity：
|
5,000,000 pcs
|
|
Card Type：
|
Mifare 1 card, CPU card, UnionPay IC card
|
|

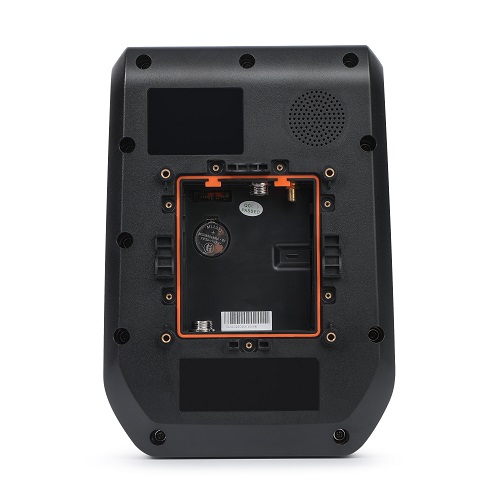

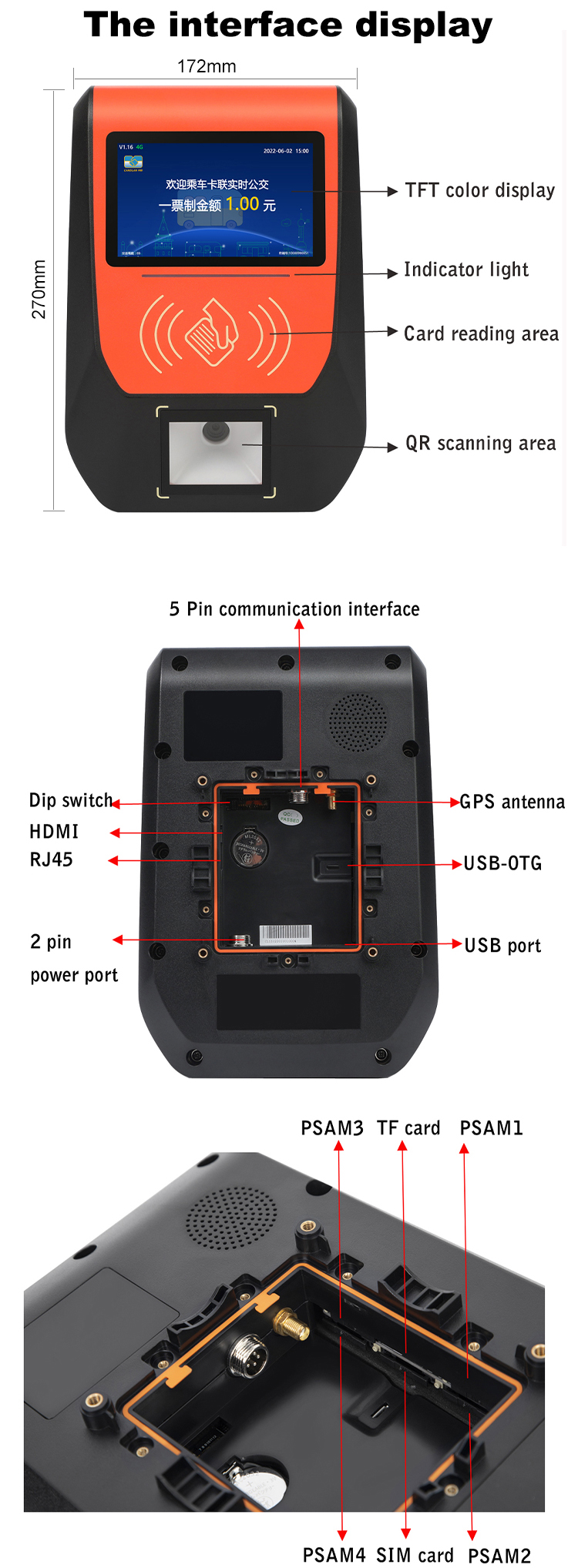

Interface
|
|
|
Communication Interface：
|
USB-HOST、USB-OTG、RS485 or TTL-232
|
|
Reserved interface:
|
HDMI
|
|
Printing Function
|
|
|
Printing module：
|
Support external POS58printer (need 5pinaviation plug turn DB9 cable)
|
|
Width of receipt:：
|
58mm
|
|
Positioning Function
|
|
|
Position way：
|
GPS, Beidou positioning (Optional)
|
|
Working Mode
|
|
|
Working Mode：
|
Stand-alone or connect to server
|
|
Power Consumption
|
|
|
Power Consumption:
|
≤10 W
|
|
Communication Function
|
|
Wireless Communication
|
GPRS.,3G,4G optional
|
|
WIFI
|
Support 802.11n/b/g standard,150Mbps,2.4Ghz
|
|
Warning Function
|
|
|
Warning Function
|
Warning when card balance is insufficient or data memory is full
|
|
Data Collection Function
|
|
Collection mode
|
2G、3G、4G and USB collection、WIFi and Bluetooth optional
|
Use Scenarios

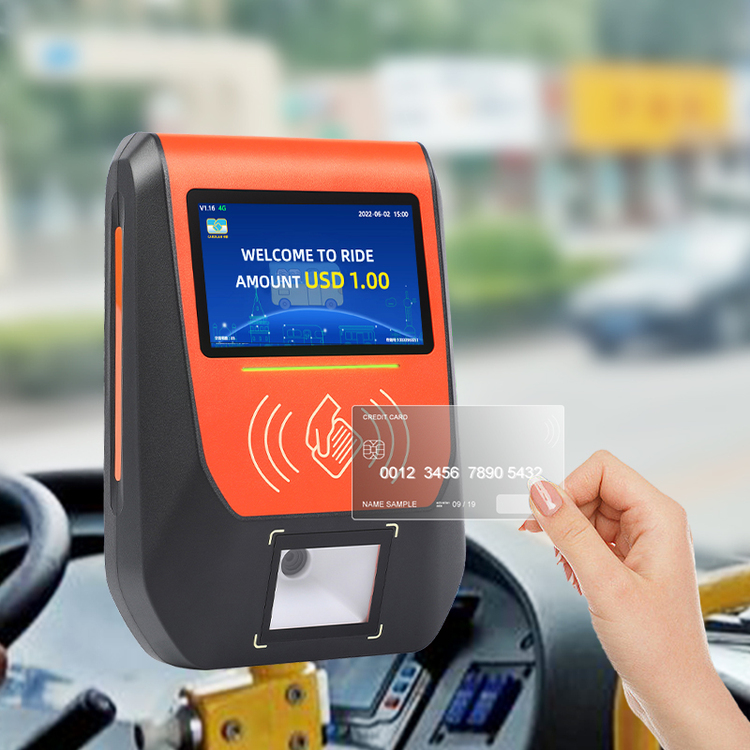

Application in Public Transit Fare Collection
In urban and regional mass transit environments, the Cardlan ticket validator functions as the core smart card reader managing passenger fare payments through contactless RFID cards and QR code scanning. The device’s integrated GPS module supports real-time vehicle location tracking, while wireless communication via 3G/4G and WiFi ensures continuous data synchronization with central ticketing servers. This enables immediate blacklist updates to prevent fare evasion and the generation of consumption reports to optimize route profitability. Voice prompts enhance passenger guidance during the payment process. System integrators benefit from its compatibility with external printers and existing infrastructure, facilitating seamless deployment in buses, metro systems, and trams for efficient, automated fare control.
Implementation in Corporate Shuttle and School Bus Systems
For dedicated employee shuttle services and student transportation, this ticket terminal offers validated access control combined with location monitoring through its GPS and Beidou integrated modules. The multi-format card reader supports employee ID and student cards based on RFID standards, enabling secure and rapid boarding validation. Real-time data communication supports fleet management systems and safety compliance by providing updated passenger logs and route tracking. The device’s durable design and wide operating temperature range ensure reliable function in diverse weather conditions. Additionally, voice prompts and large capacity storage enhance operational transparency and user convenience, supporting system administrators in managing access control and monitoring transportation safety effectively.
FAQ
What types of cards and payments does the Cardlan ticket validator support?
The Cardlan Android System supports a wide range of card types including ISO14443 Type A/B RFID cards, Mifare, CPU cards, and UnionPay IC cards. It also supports NFC and QR code payment methods, making it a versatile smart card reader suitable for various fare collection systems.
Can the ticket validator be customized to fit specific public transport needs?
Yes, the ticket validator can be tailored to integrate with different payment systems and hardware interfaces. It supports external POS58 printers and offers configurable voice prompt options, ensuring adaptation to specific operational or regional requirements.
What are the installation requirements for the Cardlan smart card reader?
The device measures 240 x 170 x 74.7 mm and supports multiple communication methods including 3G, 4G, and WiFi. It operates reliably in temperatures from -25℃ to 65℃. Installation typically involves mounting in vehicles or stations with access to power supply and wireless connectivity.
How is maintenance managed for the Cardlan Android ticket validator?
Maintenance involves regular software updates via wireless connection to ensure security and functionality. The robust hardware design supports extensive transaction storage and blacklist entries, reducing downtime. Consult our technical team for detailed maintenance plans tailored to your system.
