1. Application environment

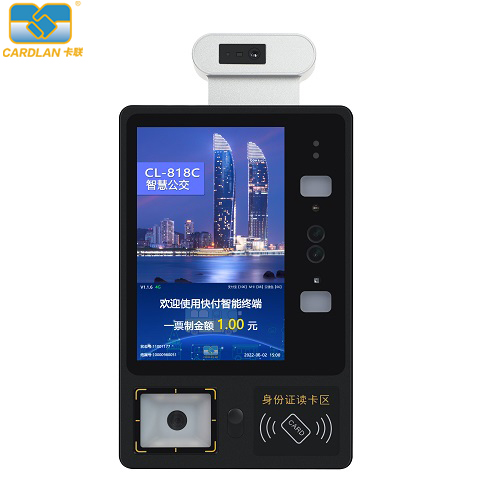

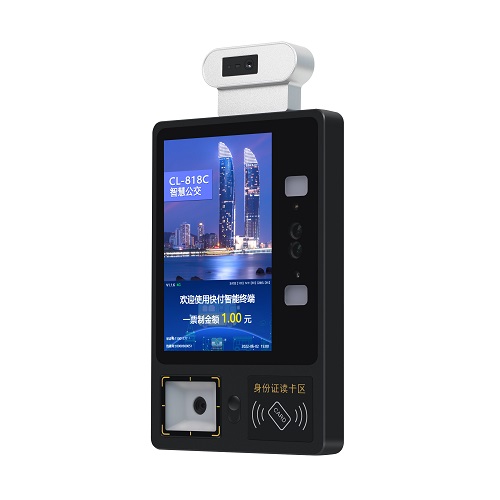

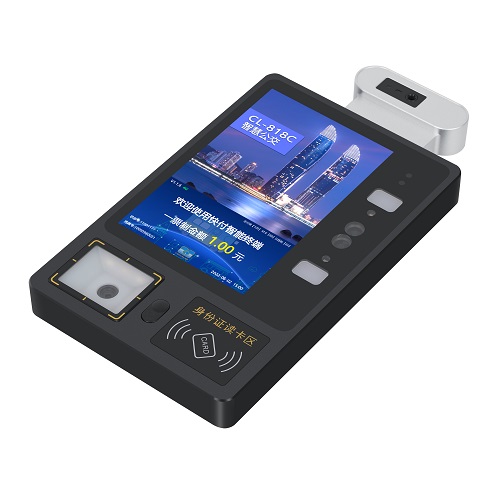

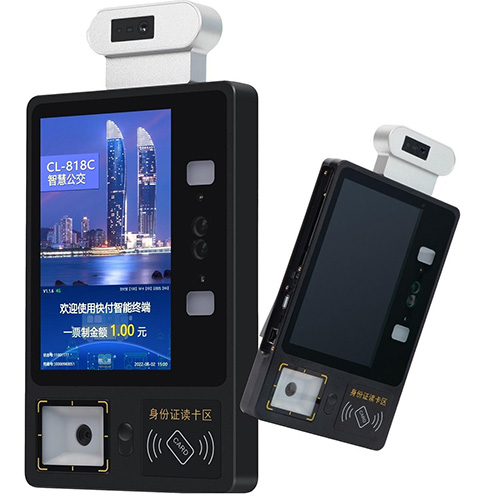

CL-818 G smart bus validator can support RFID card, QR scanning with GPS positioning module, support 4G, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
l Industrial park
2. Functional features
l Support face recognition: face information can be recognized through the camera for consumption and other operations;(Optional)
l Support temperature measurement: the temperature of the human body can be measured through the temperature recognition module and displayed on the interface of the intelligent communication terminal;(Optional)
l Support wireless communication transmission: connect to computer management software through the communication module to perform operations such as proofreading time, downloading blacklists, and collecting data;
l Terminal with wireless communication module can realize real-time data upload, and terminal without wireless communication module can upload transaction records through U disk or USB connection.
l Query consumption details: query consumption details records on the terminal based on card number, time, operator number, etc .;
l Consumption data Statistic : statistics of consumption records according to card number, time, operator number and other conditions.etc.
Parameter
|
Name：
|
Smart Terminal
|
|
Operating System：
|
Android7.1
|
|
CPU：
|
Dual Cortex-A72 large core + four Cortex-A53 small core structure and Mali T864
|
|
RAM：
|
DDR3 2G
|
|
Data storage：
|
eMMC 16G（default）、Max support TF card expend to 64G
|
|
Storage
|
|
|
Data Capacity:
|
more than 2 million detailed data for console storage, extensible
|
|
Blacklist：
|
2 hundred million，extensible
|
|
Working Environment
|
|
Working Temperature:
|
-25℃~65℃
|
|
Storage Temperature:
|
-40℃~85℃
|
|
Working Humidity:
|
0-90%（non-condensing）
|
|
Physical Parameter
|
|
Dimension：
|
270x169x72mm
|
|
Housing material:
|
Engineering plastics
|
|
LCD display
|
|
Display：
|
8 inch TFT-LCD, 1280*800
|
|
Indicator light：
|
Red and green
|
|
Camera
|
|
Scanning：
|
Wide angel/QR /customized
|
|
Facial recognition
|
Binocular, wide dynamic face recognition camera, default feature library capacity: 20,000
|
|
Voice Prompt
|
|
|
Sound Prompt：
|
Buzzer、Single channel loudspeaker
|
|
Voice Prompt：
|
16KHz,16bit single channel voice prompt
|
|
Temperature detection
|
|
Detection accuracy and distance
|
Accuracy: ± 0.3 Distance: 5cm, 75cm (default), 1.2m.
|
|
Power Supply Specification
|
|
Working Voltage：
|
DC 8V-50V
|
|
RFID
|
|
Support standard：
|
ISO-14443 Type A/B
|
|
Reading Distance：
|
0~50mm
|
|
Working Frequency：
|
13.56Mhz
|
|
Card Type：
|
MiFare Classic, CPU card
|
|
Scanning Function
|
|
Support Type
|
Support 1D code and 2D code
|
|
Face Recognition
|
|
Face recognition library
|
Front-end algorithm support 1:20000
|
|
Interface
|
|
|
Communication Interface：
|
USB-HOST、USB-OTG、RS485 and TTL-232 optional
|
|
Multi-screen display interface
|
HDMI(optional)
|
|
Positioning Function
|
|
Position way：
|
GPS、beidou （optional）
|
|
Working Mode
|
|
|
Working Mode：
|
Stand-alone or connect to server
|
|
Power Consumption
|
|
Power Consumption:
|
≤15 W
|
|
Warning Function
|
|
|
Warning Function
|
Warning when card balance is insufficient or data memory is full
|
|
Wireless Communication
|
|
Communication mode
|
2G、3G、4G and USB collection,(WIF and bluetooth optional)
|
|
Main features
|
Android 7.1 4G network, Ethernet, WIFI, Bluetooth, scan code, face recognition, temperature measurement
|
Seamless Integration with Ticketing Systems
The 4G Relay card validator is designed for seamless integration with both legacy and modern ticketing systems. Its ability to read and validate smart cards, including NFC-enabled smart card readers, makes it adaptable to a wide range of payment and access systems. Whether used in public transport, amusement parks, or corporate offices, this card validator ensures smooth and secure transactions. The device supports high-speed data transmission through its 4G connectivity, guaranteeing minimal delays in access validation and improving overall operational efficiency.
Robust and Secure Operation
Built to withstand the demands of high-traffic environments, the 4G Relay card validator is both durable and secure. Its rugged casing ensures protection against dust, moisture, and physical damage, making it ideal for outdoor or high-use areas. Additionally, the smart card reader is designed with encryption technology to ensure secure data transfer, preventing unauthorized access and ensuring the safety of sensitive information. The device’s reliable performance reduces operational risks and helps maintain smooth system functionality even in challenging conditions.
Future-Proof with 4G Connectivity
As industries increasingly rely on real-time data exchange, the 4G Relay card validator is equipped with advanced 4G connectivity to ensure future-proof operation. This feature allows the device to easily integrate with cloud-based systems and enable real-time updates for ticketing and access control, providing users with a modern, scalable solution. The 4G relay system ensures that information is transmitted quickly and securely, minimizing downtime and providing a responsive system for both operators and users.
Use Scenarios
Public Transport Systems
The 4G Relay card validator is a key component in modern public transport systems, offering fast, secure access control for passengers. Whether used on buses, trams, or metro stations, this device can easily validate smart cards and ticketing credentials with minimal user interaction. The seamless integration with smart card readers ensures smooth passenger flow, while the 4G connectivity enables real-time updates of ticket information, ensuring that the system stays synchronized with central databases. This reduces wait times and enhances the overall passenger experience.
Event and Venue Access Control
In venues like stadiums, concert halls, or amusement parks, the 4G Relay card validator provides fast and secure access control. The device's smart card reader can easily authenticate tickets and grant entry without delays, enhancing visitor experience. Its robust design ensures it can handle high volumes of visitors without compromising performance. The system’s 4G connectivity allows for smooth, real-time communication with backend servers, ensuring that ticket validity is always up-to-date, even in crowded venues where connectivity might typically be a concern.
Corporate Office Security Systems
The 4G Relay card validator can be used in corporate office environments to secure access to restricted areas. Employees and authorized personnel can use NFC-enabled smart cards to gain entry to buildings or specific rooms. The integration of the card reader with the office’s access control system ensures quick and reliable authentication, while the device’s ability to connect via 4G ensures that access logs and security data are updated in real-time. This improves both security and operational efficiency in corporate settings.
About Us
Founded with a vision to innovate the card-based access and ticketing systems, CARDLAN has over a decade of expertise in developing cutting-edge solutions for public transport, event venues, and corporate environments. Our core products, including card readers, smart ticketing devices, and validators, have been at the forefront of improving operational efficiency and customer satisfaction. As a leader in the industry, we focus on leveraging advanced technologies to create products that are both reliable and scalable. We are committed to providing high-quality products that meet the evolving demands of businesses across the globe. At CARDLAN, our research and development team continuously works to ensure that our products stay at the forefront of technological advancements, offering seamless integration with various systems and ensuring the utmost security and efficiency.
FAQ
How does the 4G Relay card validator work?
The 4G Relay card validator works by scanning and validating NFC-enabled cards in real-time. It connects to a POS system or access control system via its 4G connection, ensuring seamless transactions and up-to-date ticket validation.
What types of smart cards are compatible with the card validator?
The card reader is compatible with a wide range of NFC-enabled smart cards, including those used for public transport, event tickets, and access control systems, ensuring flexibility across different industries.
Can the card validator be integrated with other ticketing systems?
Yes, the 4G Relay card validator is designed to easily integrate with existing ticketing and access control systems, offering seamless communication via multiple interfaces including 4G and NFC technology.
Is the card validator suitable for outdoor environments?
Yes, the 4G Relay card validator is built with a rugged casing to withstand harsh outdoor conditions, making it suitable for use in various environments such as public transport or outdoor events.
How can I maintain the card validator?
The 4G Relay card validator is designed for low-maintenance operation. It includes remote diagnostics features, which allow for swift troubleshooting and reduce downtime, making it easy to maintain in high-traffic environments.
