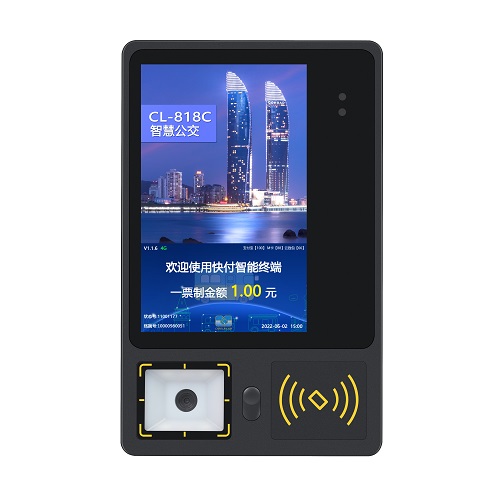

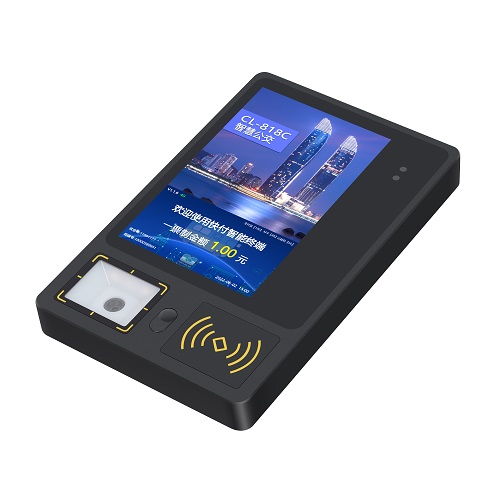

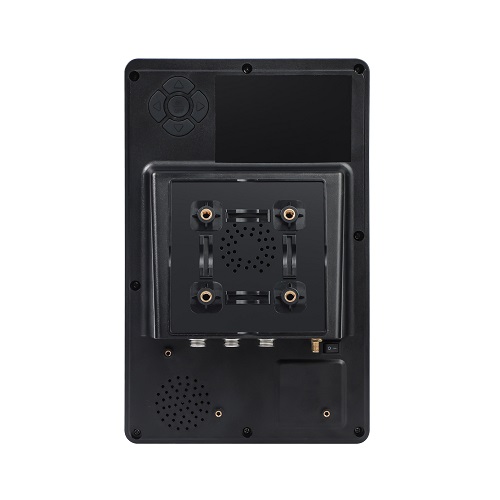

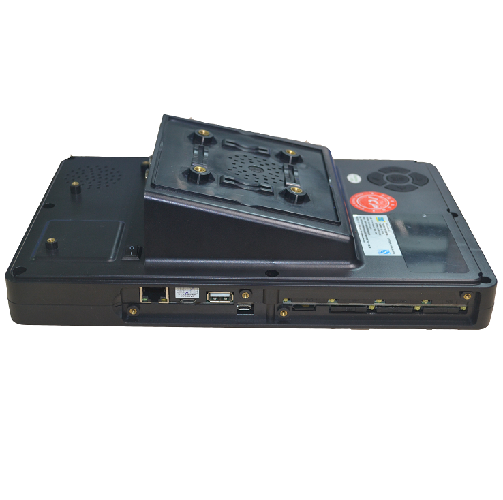

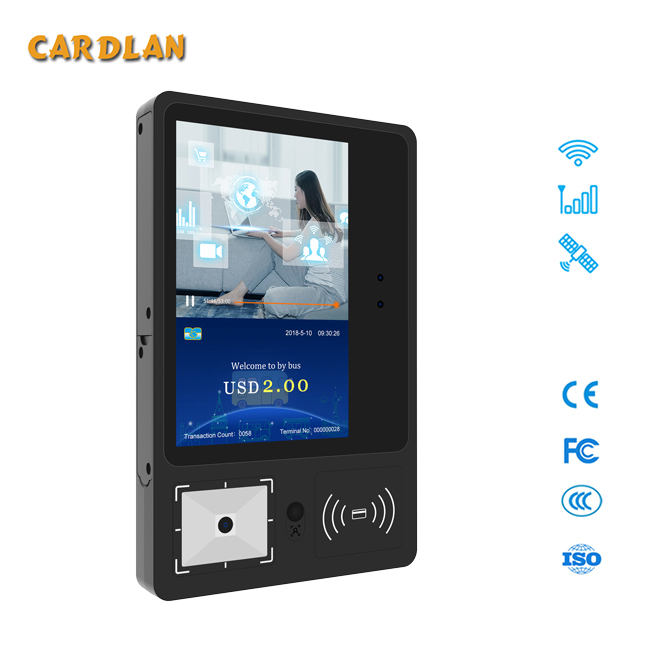

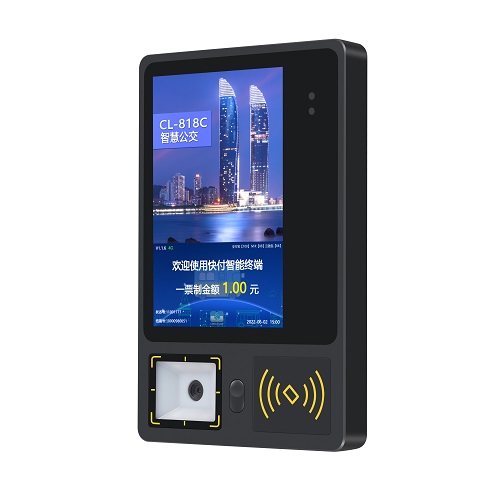

CL-A818 smart bus validator can support RFID and NFC card, with GPS positioning module and qr code scanner, support 4G, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
l Support wireless communication,remote connect to server management software to realize real time time-revision,black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection.
l Support live voice prompts, supports 15 kinds of voice prompts：such as "student card","employee card".
l Support consumption details and statistics query,according to card No.,time,operator No.,etc.
|
Name： |
Smart Bus Validator CL-A818 |
|
Operating System： |
Android5.1 |
|
CPU： |
Quad-core cortex-a9 main frequency 1.4GHz、integrated GPU Mali-400 MP4 |
|
RAM： |
DDR3 1G（default） |
|
Data storage： |
eMMC 8G（default）、Max support 64G TF card |
|
Storage |
|
|
Data Capacity: |
more than 2 million detailed data for console storage, unlimited data with 4G connection |
|
Blacklist： |
1 hundred million，more with TF card |
|
Working Environment |
|
|
Working Temperature: |
-25℃~65℃ |
|
Storage Temperature: |
-40℃~85℃ |
|
Working Humidity: |
0-90%（non-condensing） |
|
Physical Parameter |
|
|
Dimension： |
270x169x72mm(do not include installation parts) |
|
Housing material: |
|
|
LCD display |
|
|
Display： |
8 inch TFT-LCD, 1280*800 |
|
Indicator light： |
Red and green |
|
Camera |
|
|
Scanning： |
Wide angel/QR /customized |
|
Distance： |
3CM -15CM |
|
Voice Prompt |
|
|
Sound Prompt： |
Buzzer、Single channel loudspeaker |
|
Voice Prompt： |
16KHz,16bit single channel voice prompt |
|
Power Supply Specification |
|
|
Working Voltage： |
DC 8V-50V |
|
RFID |
|
|
Support standard： |
ISO-14443 Type A; ISO/IEC15693 at optional |
|
Reading Distance： |
0~50mm |
|
Working Frequency： |
13.56Mhz |
|
Card Capacity： |
91,880,000 pcs |
|
Card Type： |
MiFare Classic, MiFare Desfire, Mifare Plus ,support CPU card |
|
Interface |
|
|
Communication Interface： |
USB-HOST、USB-OTG、HDMI、RS485 and TTL-232 optional |
|
Multi screen interface |
|
|
Printing |
|
|
Printing module： |
Support external POS58 printer (need 5 pinaviation plug turn DB9 cable) |
|
Paper Width： |
58mm |
|
Positioning Function |
|
|
Position way： |
|
