1. Application
CL1306 bus POS can support RFID card, with GPS positioning module, support GPRS, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
- Public transport IC card payment
- Scenic spots/amusement park card payment
- Employee shuttle bus card validation
- Safety school bus IC card system
2. Functional features
- Support wireless communication,remote connect to server management software to realize real time time-revision,black-list downloading and data collection etc.
- Support data real time uploading or USB local data collection
- Support live voice prompts,supports 15 kinds of voice prompts：such as "student card", "employee card"
- Support consumption details and statistics query,according to card No., time, operator No.,etc.
Parameter
Technical specifications:
|

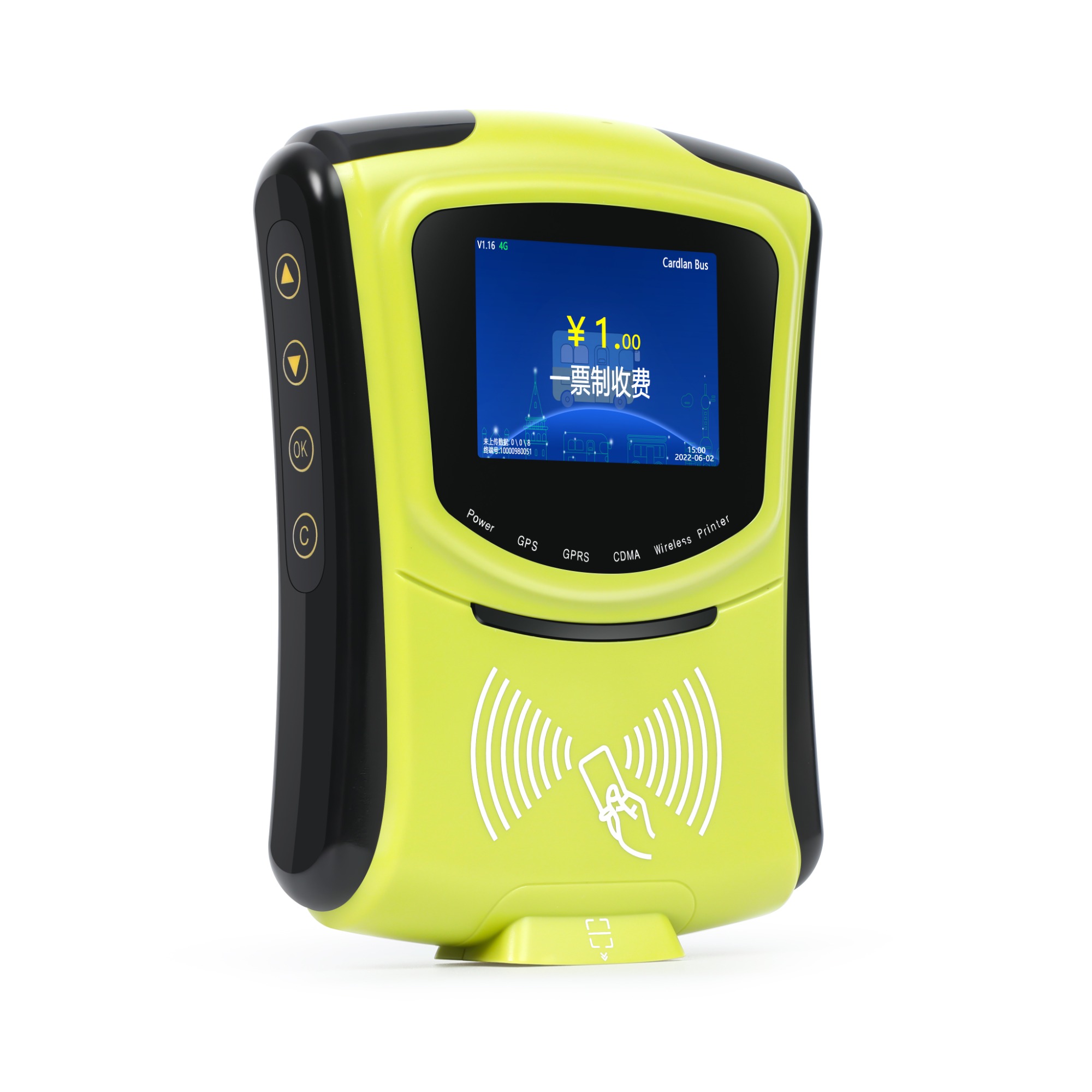

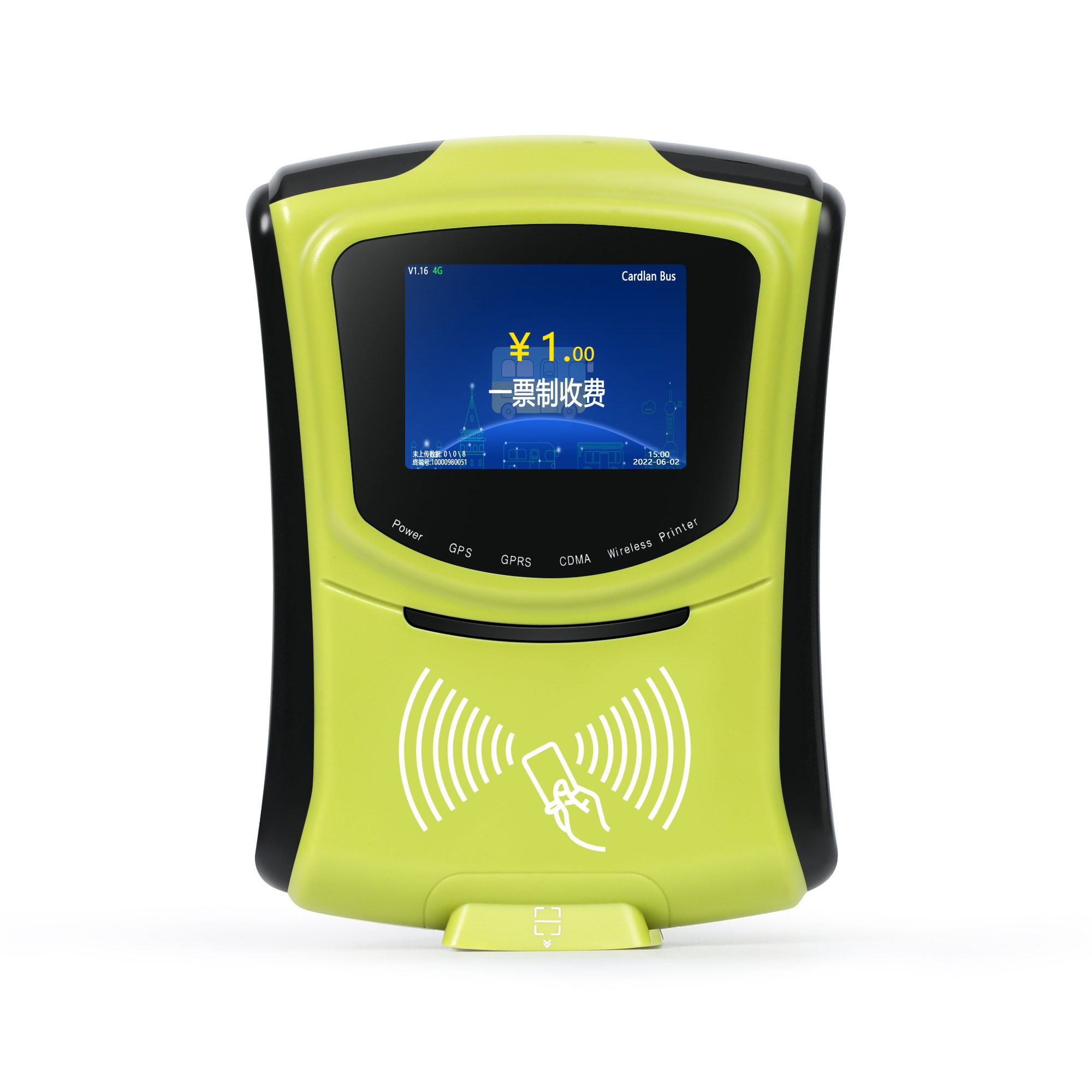

Model:
|
CL1306 bus pos terminal
|
|
Dimension:
|
200*151*61.5mm
|
|
Material:
|
Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference
|
|
Display:
|
3.5 inch LCD display，320x240
|
|
Operating system:
|
Linux 2.6 system
|
|
CPU:
|
N32905 processor，ARM9 core @ 240MHZ
|
|
Memory:
|
32MBytes SDRAM，512MB NANDFlash
|
|
Data capacity:
|
259840 pcs of detailed data for console storage, unlimited data at GPRS storage
|
|
Card capacity:
|
91,880,000 pcs
|
|
Black list:
|
91,880,000 pcs (download thru PC with USB)
|
|
Working Voltage:
|
DC 8V-50V
|
|
Operating temperature:
|
-40℃~75℃
|
|
Storage temperature:
|
-45℃~85℃
|
|
Humidity:
|
0-95% RH non condensing
|
|
Lighting:
|
Red, Green light
|
|
Sound prompt:
|
Buzzer, single channel speaker (voice report)
|
|
Voice report prompt:
|
16KHz,16bit single channel voice report prompt
|
|
Keypad:
|
4 command buttons
|
|
RFID:
|
Can read and write ISO14443 TYPE A\B Electronic tag (Incl. Combi-Card )
|
|
Read card distance:
|
0~50mm
|
|
Supporting card:
|
Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card
|
|
Frequency:
|
13.56MHz
|
|
Interfaces/Connectors:
|
RS232, RS485, USB
|
|
Printer modules:
|
Can be connected to slip printer-POS58
|
|
Width of receipt:
|
Based on printer configuration
|
|
Positioning mode:
|
GPS
|
|
Power consumption:
|
≤10W
|
|
Communication Modules:
|
GPRS(900Mhz/1800Mhz), or CDMA(800Mhz)
|
|
WIFI：
|
Supporting 802.11n/b/g standards,150Mbps,2.4Ghz
|
|
UnionPay:
|
Compatible for PBOC3.0 UnionPay card
|
|
Upgrading:
|
Connect USB to PC, upgrade with GPRS
|
|
Data collection:
|
WIFI, GPRS,3G,4G, USB
|
Efficient and Versatile Bus Ticket Validator
The CARDLAN Bus Validator is built to streamline fare collection in public transport systems. Equipped with a bus ticket validator, this device processes RFID and prepaid cards, enabling passengers to validate their tickets quickly and securely. Its bus card reader functionality ensures compatibility with various ticketing systems, making it suitable for buses, trams, and other forms of public transportation. Designed for high-volume use, it ensures fast and accurate fare processing, which improves the overall efficiency of public transport networks. Additionally, the validator supports various payment methods, such as smart cards and mobile applications, providing flexible fare collection options for both operators and passengers.
Compact and Durable Design for Bus Readers
The CARDLAN Bus Validator features a compact, robust design, making it ideal for use in high-traffic transit systems. The bus reader is engineered to withstand the demands of daily usage in tough public transportation environments. The device is resistant to harsh weather conditions and can handle exposure to dust, humidity, and extreme temperatures. Its durable construction ensures long-lasting performance, minimizing maintenance costs and reducing downtime. The compact form factor allows for easy integration into various transport modes, including buses, trains, and terminals, ensuring seamless deployment without taking up too much space in the vehicle.
Seamless Integration and Bus Ticket Validator Efficiency
The CARDLAN Bus Validator integrates seamlessly with existing ticketing systems. With its bus ticket validator feature, transport operators can easily update or upgrade their current fare collection systems without the need for extensive modifications. The system supports cloud-based monitoring, which allows operators to track real-time data, such as the number of tickets validated, system status, and performance reports. This integration capability ensures that the bus reader functions optimally across the entire fleet, providing efficient and secure fare collection at all times. The system’s remote management feature also reduces the need for on-site maintenance, allowing operators to address issues promptly and ensure smooth operations.
Product Advantages
Fast and Reliable Bus Ticket Validator
The CARDLAN Bus Validator is designed for speed and reliability. Passengers can easily tap their bus card reader or swipe RFID tickets to gain access, significantly reducing boarding times. The bus ticket validator ensures accurate and quick validation, preventing delays and ensuring that public transport systems run smoothly even during peak hours. The fast processing speeds make it an ideal choice for high-volume transit networks where efficiency is crucial.
Multi-Functionality and Flexibility for Bus Card Readers
The CARDLAN Bus Validator combines several functionalities into one device. As a bus card reader, it supports a wide range of fare payment options, including contactless cards, mobile apps, and prepaid tickets. This flexibility makes it easy for transit authorities to accommodate diverse payment methods, enhancing the convenience for passengers. The bus ticket validator also supports future upgrades, ensuring that the system remains adaptable as new payment technologies emerge.
Durable and Cost-Effective Bus Ticket Validator
Built for reliability, the CARDLAN Bus Validator is constructed to endure the rigors of public transport environments. Its durable design reduces maintenance needs, making it a cost-effective choice for operators. The bus ticket validator and bus reader are both built to last, providing long-term value and ensuring that transport systems can continue to operate without interruptions. This robust design helps keep operational costs low, offering a reliable and sustainable solution for public transport agencies.
About Us
CARDLAN is a leader in providing smart and secure ticketing solutions for the transportation industry. Established with a focus on innovation, we specialize in developing advanced products like the bus ticket validator, bus card reader, and other fare collection systems designed to enhance the public transport experience. Our products are trusted by transportation authorities worldwide for their reliability and efficiency. At CARDLAN, we invest in research, development, and manufacturing to ensure that each product we offer meets the highest standards of quality and performance. By incorporating the latest technologies, such as RFID and smart payment solutions, we continue to deliver cost-effective and scalable solutions for public transportation systems, helping operators modernize their fare collection infrastructure.
FAQ
What payment methods are supported by the CARDLAN Bus Validator?
The CARDLAN Bus Validator supports a wide range of payment methods, including RFID cards, mobile tickets, and prepaid fare cards, making it a versatile solution for public transport systems.
Can the CARDLAN Bus Validator be integrated into existing transport systems?
Yes, the bus ticket validator can be easily integrated with existing ticketing and payment systems, allowing transport authorities to upgrade their infrastructure without disruption.
How does the CARDLAN Bus Validator improve operational efficiency?
The CARDLAN Bus Validator speeds up fare collection by allowing passengers to quickly tap their bus card reader or swipe RFID tickets, reducing boarding times and improving overall system efficiency.
Is the CARDLAN Bus Validator suitable for high-traffic environments?
Yes, the CARDLAN Bus Validator is designed for high-volume transit systems. Its robust construction and fast processing capabilities make it ideal for urban buses, commuter rails, and other busy public transport networks.
What is the lifespan of the CARDLAN Bus Validator?
The CARDLAN Bus Validator is built to last with durable materials that can withstand daily use in demanding environments, offering long-term value and reducing maintenance needs.
Upgrade your transport system with CARDLAN – implement our bus ticket validator for faster, more efficient fare collection today!
