Functional Positioning for Transit and Payment Systems

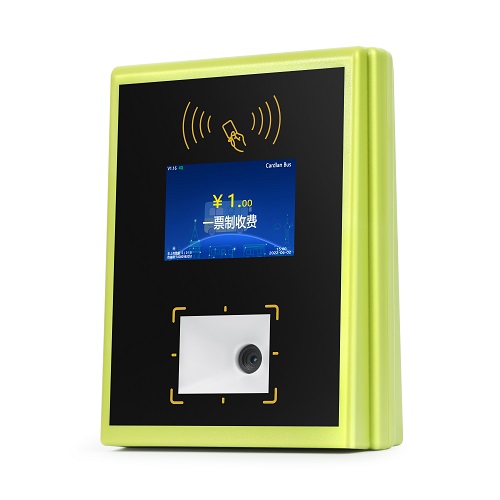

The Cardlan Robust Ticket Validator functions as a critical component for transit authorities and payment service providers requiring dependable and efficient electronic ticket validation. It is engineered to support high-volume environments where rapid transaction processing is essential, integrating with Pos terminals to permit versatile fare collection through contactless card reading technologies. This device serves as a secure interface for validating multiple card standards including RFID and IC cards, facilitating operational continuity for public transportation networks, amusement parks, and employee access control systems. Its versatility addresses the needs of system integrators and operators seeking robust fare management solutions.
Advanced Technical Composition and Performance Metrics
Constructed from industrial-grade engineering plastics with anti-static coatings, the ticket validator features a sealed design that is dustproof, waterproof, and shockproof, ensuring durability under demanding operational conditions. It incorporates a N32905 ARM9 processor running at 240MHz, paired with 32MB SDRAM and 512MB NAND Flash, providing reliable computation and memory capacity. Supporting ISO14443 TYPE A/B protocols, it reads Mifare, DESFire, and CPU cards with electromagnetic interference resistance. Additionally, it offers real-time wireless communication via 4G and WiFi, along with a 3.5-inch LCD display and voice prompts, enabling immediate operational feedback and remote data management for streamlined ticket terminal administration.
Industry Applications and Operational Value
This ticket validator is extensively utilized in public transit fare collection, enabling seamless boarding and automated validation of contactless tickets. Beyond mass transit, it facilitates secure access verification in employee shuttle services and educational transport fleets, delivering compliance with industry standards such as UnionPay PBOC3.0. The system’s compatibility with slip printers and GPS positioning enhances transaction traceability and audit capabilities. Its real-time data upload supports centralized monitoring and blacklist management, improving system integrity and operational efficiency in diverse environments where smart card reader technologies are integral to automated fare and access control systems.
Product Advantages
Design and Structural Excellence for Harsh Environments
The Cardlan ticket validator’s design prioritizes environmental resilience and modular system integration. Its sealed, industrial-grade casing ensures protection against water, dust, shock, and electromagnetic disturbances, extending operational lifespan in variable climatic and physical conditions. The device supports multiple connectivity interfaces including RS232, RS485, and USB, enabling integration with existing POS terminals and peripheral hardware such as slip printers. This structural versatility facilitates easy installation and scalability within complex transit and payment ecosystems, reflecting thoughtful engineering tailored to professional deployment scenarios requiring high reliability and interoperability.
Performance Reliability and Operational Efficiency Enhancements
Equipped with a stable power supply featuring voltage overload protection, the ticket terminal ensures consistent functioning even under unstable electrical conditions. The real-time voice prompt system improves user interaction by providing immediate feedback during validation processes, reducing queue times and operator errors. Wireless communication capabilities via 4G and WiFi support remote management and data synchronization, diminishing maintenance overhead and enabling prompt response to evolving operational demands. The large onboard memory and high card capacity reduce the need for frequent data maintenance, delivering substantial value in system uptime and data integrity for engineering and operations teams.
1. Application

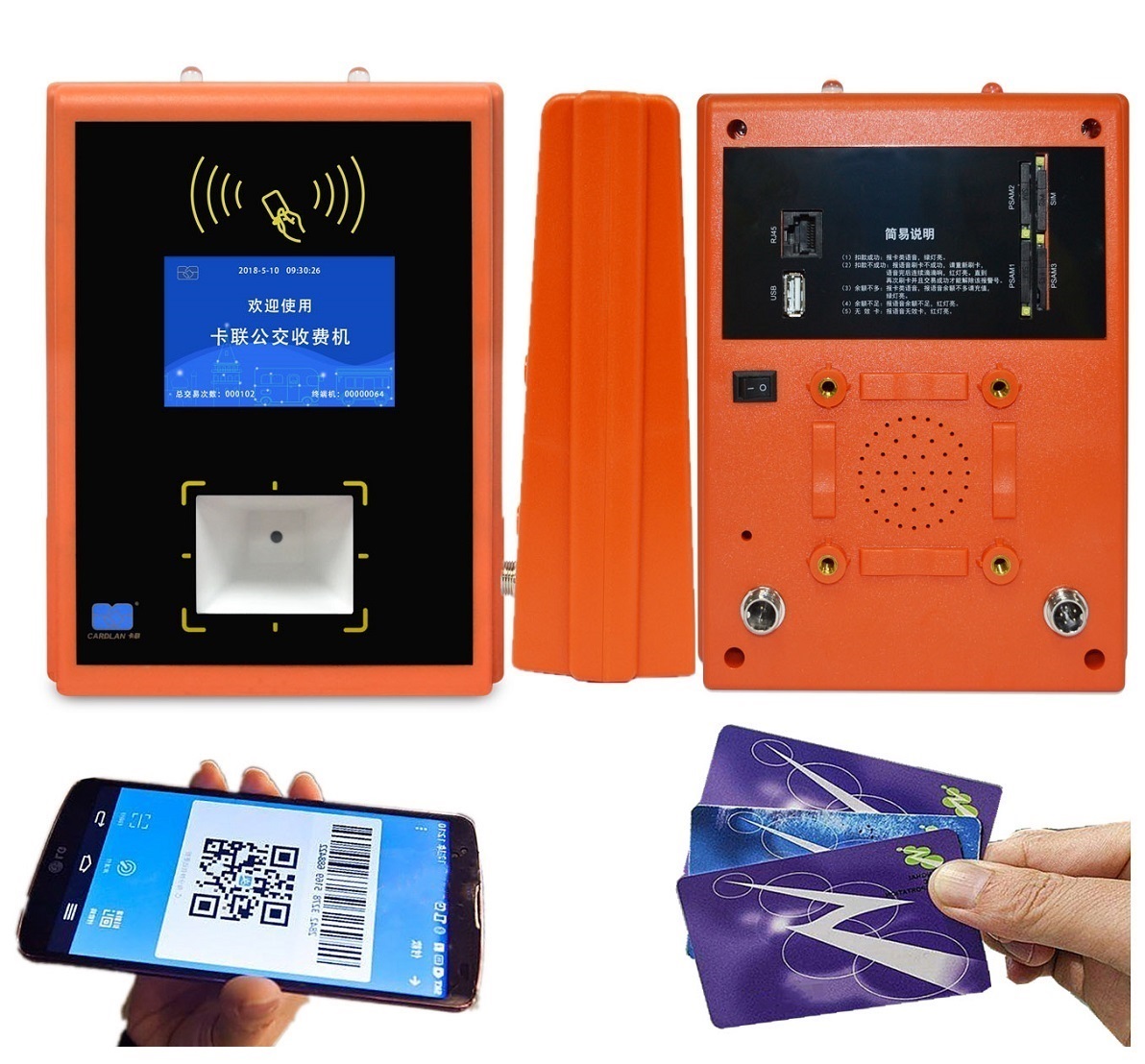

CL-0409C bus POS can support RFID card,with GPS positioning moduleand QR code scanner, support 4G,WIFI wireless communication etc.Can be used for electronic payment or card validation in following field：
l Public transport IC card payment
l Scenic spots/amusement park card payment
l Employee shuttle bus card validation
l Safety school bus IC card system
2. Functional features
l Support wireless communication,remote connect to server management software to realize real time time-revision,black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection.
l Support live voice prompts, supports 15 kinds of voice prompts：such as "student card","employee card".
l Support consumption details and statistics query,according to card No.,time,operator No.,etc.
Parameter
|
Model:
|
CL1306 bus pos terminal
|
|
Dimension:
|
200*151*61.5mm
|
|
Material:
|
Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference
|
|

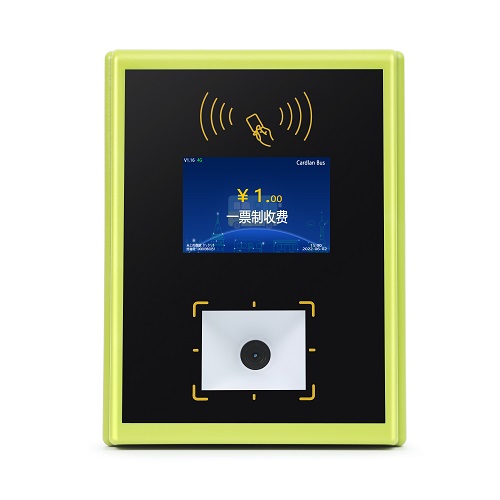

Display:
|
3.5 inch LCD display，320x240
|
|
Operating system:
|
Linux 2.6 system
|
|
CPU:
|
N32905 processor，ARM9 core @ 240MHZ
|
|
Memory:
|
32MBytes SDRAM，512MB NANDFlash
|
|
Data capacity:
|
259840 pcs of detailed data for console storage, unlimited data at GPRS storage
|
|
Card capacity:
|
91,880,000 pcs
|
|
Black list:
|
91,880,000 pcs (download thru PC with USB)
|
|
Working Voltage:
|
DC 8V-50V
|
|
Operating temperature:
|
-40℃~75℃
|
|
Storage temperature:
|
-45℃~85℃
|
|
Humidity:
|
0-95% RH non condensing
|
|
Lighting:
|
Red, Green light
|
|
Sound prompt:
|
Buzzer, single channel speaker (voice report)
|
|
Voice report prompt:
|
16KHz,16bit single channel voice report prompt
|
|
RFID:
|
Can read and write ISO14443 TYPE A\B Electronic tag (Incl. Combi-Card )
|
|
Read card distance:
|
0~50mm
|
|
Supporting card:
|
Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card
|
|
Frequency:
|
13.56MHz
|
|

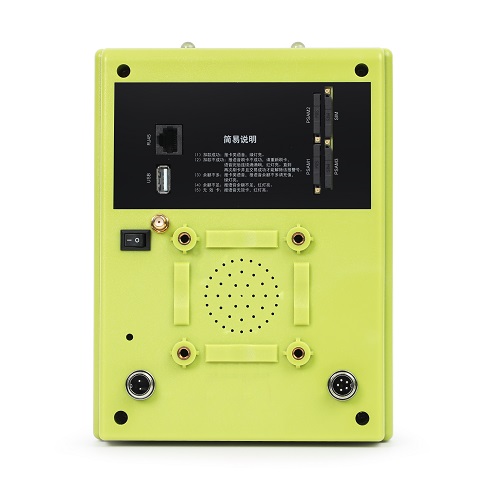

Interfaces/Connectors:
|
RS232, RS485, USB
|
|
Printer modules:
|
Can be connected to slip printer-POS58
|
|
Width of receipt:
|
Based on printer configuration
|
|
Positioning mode:
|
GPS
|
|
Power consumption:
|
≤10W
|
|
Communication Modules:
|
4G
|
|
WIFI：
|
Supporting 802.11n/b/g standards,150Mbps,2.4Ghz
|
|
UnionPay:
|
Compatible for PBOC3.0 UnionPay card
|
|
Upgrading:
|
Connect USB to PC, upgrade with GPRS
|
|
Data collection:
|
WIFI, GPRS,3G,4G, USB
|
Use Scenarios
Public Transit Validation and Automated Fare Collection
In high-traffic public transportation systems, the Cardlan ticket validator operates as a frontline device for validating contactless IC cards, facilitating rapid passenger boarding and fare processing. This environment demands robustness against environmental challenges, including dust, moisture, and temperature fluctuations, which the validator’s sealed design and industrial-grade materials effectively address. Its compatibility with multiple card technologies and real-time data upload via wireless communication allow transport operators to maintain accurate transaction records, deploy live blacklist updates, and integrate validation data seamlessly into centralized fare management platforms. This ensures compliance, operational consistency, and enhanced passenger flow management.

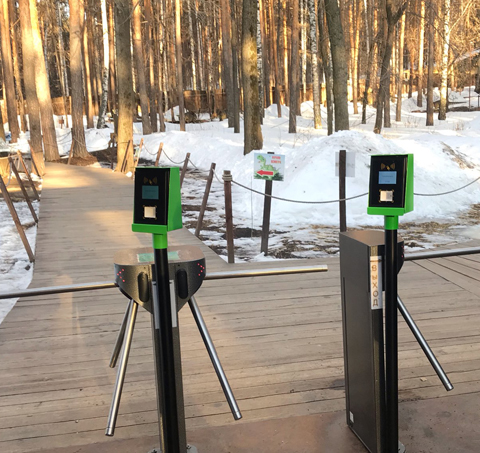

Access Control and Command in Shuttle and Recreational Facilities
The ticket validator also serves critical roles in controlled-access applications such as employee shuttle services and amusement parks, where secure verification via contactless cards is paramount. Integrated with ticket terminals, it supports multi-factor identification and real-time data transmission, enabling immediate authentication and tracking to comply with organizational security policies. Its GPS positioning enhances fleet tracking and audit trails. By connecting with existing POS and security systems through multiple communication interfaces, this device ensures smooth integration into comprehensive access control workflows, enabling administrators to enforce secure, efficient, and regulated entry protocols across diverse operational contexts.
FAQ
What materials are used in the construction of the Cardlan ticket validator?
The ticket validator is made of high-quality engineering plastics with an anti-static coating. It features a sealed, dustproof, waterproof, and shockproof design, ensuring durability in harsh environments for long-term industrial use.
Can the Cardlan system be customized for specific public transportation needs?
Yes, Shenzhen Cardlan Technology offers customized configurations for the card reader and payment system based on client requirements, including support for various card types and communication protocols to fit diverse transit operations.
What installation support does Cardlan provide for the ticket terminal?
Cardlan supplies professional door-to-door installation services along with 24-hour online technical assistance. This ensures smooth integration of the ticket terminal with existing POS systems and transit infrastructure.
How is maintenance and data management handled for Cardlan's ticket validator?
The system supports real-time data upload via 4G and WiFi, enabling remote management. It offers local data collection through USB and comes with software maintenance and hardware warranty, ensuring reliable long-term operation of the card reader system.
