1. Application environment
CL-A818G smart bus validator can support RFID card, QR scanning with GPS positioning module, support 4G, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
l Industrial park
2. Functional features

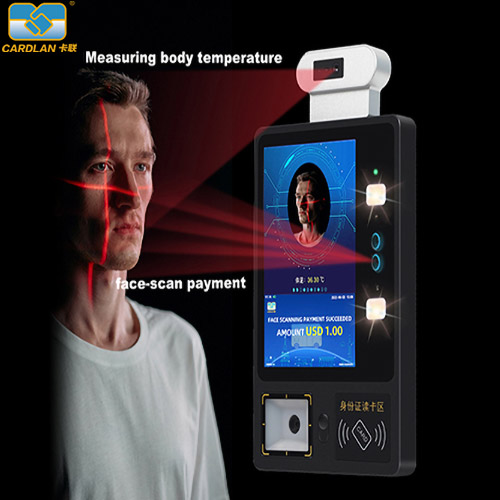

l Support face recognition: face information can be recognized through the camera for consumption and other operations;(Optional)
l Support temperature measurement: the temperature of the human body can be measured through the temperature recognition module and displayed on the interface of the intelligent communication terminal;(Optional)
l Support wireless communication transmission: connect to computer management software through the communication module to perform operations such as proofreading time, downloading blacklists, and collecting data;
l Terminal with wireless communication module can realize real-time data upload, and terminal without wireless communication module can upload transaction records through U disk or USB connection.
l Query consumption details: query consumption details records on the terminal based on card number, time, operator number, etc .;
l Consumption data Statistic : statistics of consumption records according to card number, time, operator number and other conditions.etc.
Functional Positioning for Security and Access Integration
The Cardlan facial recognition temperature detection terminal functions as a robust ticket terminal intended for operators requiring seamless integration of biometric verification and ticket validation. Tailored for transit authorities, facility managers, and health-compliant access providers, it supports NFC ticket validation alongside advanced facial recognition and real-time temperature screening. This solution targets environments prioritizing both security and health safety, enabling precise identification and efficient passenger or employee throughput. Equipped to support millions of transaction records, the system enhances operational control for high-volume public and private access scenarios demanding both speed and reliability.
Technical Specifications Enabling Robust and Versatile Performance
Harnessing an Android 7.1 platform, the terminal features a dual Cortex-A72 and quad Cortex-A53 CPU architecture coupled with Mali T864 GPU, providing stable processing power for biometric algorithms and multi-protocol ticket validation. The device incorporates an 8-inch TFT-LCD display at 1280x800 resolution for clear user interface presentation, and supports RFID cards compliant with ISO-14443 Type A/B standards. With facial recognition accuracy encompassing up to 20,000 face profiles and temperature measurement precision of ±0.3°C, the unit’s multi-channel wireless communication—including 4G, WIFI, and Bluetooth—ensures dependable real-time data transmission. Peripheral interfaces extend connectivity options, further enhancing its adaptability within complex access control ecosystems.
Industry Applications Demonstrating Efficiency in Health-Sensitive and Transit Environments
This ticket terminal excels in industries demanding combined biometric security and health monitoring, such as public transportation networks, corporate campuses, and healthcare facilities. It integrates NFC and QR code validation with facial recognition and thermographic scanning to safeguard safety-sensitive sites while optimizing passenger flow. The system’s compatibility with existing fare collection and blacklist management platforms simplifies deployment in urban transit chains. By delivering accurate consumption data and enabling remote transaction management, the terminal supports operators in complying with health regulations and elevating security standards without compromising throughput or user convenience.
Product Advantages
Design and Structural Innovation Facilitating Modular Deployment
The Cardlan terminal’s architecture integrates a binocular wide dynamic camera with a multi-sensor temperature detection module, assembled within a compact, durable housing produced from engineering plastics. Its modular design supports flexible integration with external peripherals, including USB and RS485 interfaces, allowing seamless connection to existing access control and fare management infrastructure. The support for multiple communication protocols — such as 4G, WIFI, and GPS positioning — ensures reliable network coverage in varied operating environments. Furthermore, the unit’s scalable blacklist capacity and expandable storage via TF card promote adaptability within growing or complex system requirements, aligning with diverse business needs for efficient card reader and ticket validator deployments.
Enhanced Performance and User-Centric Functionality
Operational efficiency is elevated through sophisticated facial recognition capable of processing up to twenty thousand profiles and fast, contactless ticket authentication via NFC and QR code scanning. The ±0.3°C temperature detection precision supports stringent health monitoring demands without compromising access speed. Real-time data uploads and robust transaction record management provide administrators with actionable insights and operational transparency. The user interface on the high-resolution 8-inch display enables intuitive interaction and streamlined workflows for operators and users alike. The terminal’s flexibility to disable or customize biometric modules further extends its utility across varying compliance scenarios and customer preferences.
Parameter
|
Name：
|
Smart Terminal
|
|
Operating System：
|
Android7.1
|
|
CPU：
|
Dual Cortex-A72 large core + four Cortex-A53 small core structure and Mali T864
|
|
RAM：
|
DDR3 2G
|
|
Data storage：
|
eMMC 16G（default）、Max support TF card expend to 64G
|
|
Storage
|
|
|
Data Capacity:
|
more than 2 million detailed data for console storage, extensible
|
|
Blacklist：
|
2 hundred million，extensible
|
|
Working Environment
|
|
Working Temperature:
|
-25℃~65℃
|
|
Storage Temperature:
|
-40℃~85℃
|
|
Working Humidity:
|
0-90%（non-condensing）
|
|
Physical Parameter
|
|
Dimension：
|
270x169x72mm
|
|
Housing material:
|
Engineering plastics
|
|
LCD display
|
|
Display：
|
8 inch TFT-LCD, 1280*800
|
|
Indicator light：
|
Red and green
|
|
Camera
|
|
Scanning：
|
Wide angel/QR /customized
|
|
Facial recognition
|
Binocular, wide dynamic face recognition camera, default feature library capacity: 20,000
|
|
Voice Prompt
|
|
|
Sound Prompt：
|
Buzzer、Single channel loudspeaker
|
|
Voice Prompt：
|
16KHz,16bit single channel voice prompt
|
|
Temperature detection
|
|
Detection accuracy and distance
|
Accuracy: ± 0.3 Distance: 5cm, 75cm (default), 1.2m.
|
|
Power Supply Specification
|
|
Working Voltage：
|
DC 8V-50V
|
|
RFID
|
|
Support standard：
|
ISO-14443 Type A/B
|
|
Reading Distance：
|
0~50mm
|
|
Working Frequency：
|
13.56Mhz
|
|
Card Type：
|
MiFare Classic, CPU card
|
|
Scanning Function
|
|
Support Type
|
Support 1D code and 2D code
|
|
Face Recognition
|
|
Face recognition library
|
Front-end algorithm support 1:20000
|
|
Interface
|
|
|
Communication Interface：
|
USB-HOST、USB-OTG、RS485 and TTL-232 optional
|
|
Multi-screen display interface
|
HDMI(optional)
|
|
Positioning Function
|
|
Position way：
|
GPS、beidou （optional）
|
|
Working Mode
|
|
|
Working Mode：
|
Stand-alone or connect to server
|
|
Power Consumption
|
|
Power Consumption:
|
≤15 W
|
|
Warning Function
|
|
|
Warning Function
|
Warning when card balance is insufficient or data memory is full
|
|
Wireless Communication
|
|
Communication mode
|
2G、3G、4G and USB collection,(WIF and bluetooth optional)
|
|
Main features
|
Android 7.1 4G network, Ethernet, WIFI, Bluetooth, scan code, face recognition, temperature measurement
|
Use Scenarios
Contactless Ticket Validation in Urban Public Transport Systems
In metropolitan transit systems, the integration of this ticket terminal optimizes passenger boarding by combining rapid NFC and QR code validation with biometric facial recognition, significantly reducing queue times and human contact points. Operating within bus fleets or metro stations, the terminal verifies ticket authenticity while enforcing temperature screening protocols essential during public health events. Its wireless connectivity supports centralized data management and blacklist enforcement, enabling operators to maintain control over fare compliance and security with minimal operational disruption. The solution aligns with compliance requirements, facilitating efficient, hygienic fare collection and passenger identification processes in high-volume transit environments.
Secure Access and Health Monitoring Within Institutional Facilities
In corporate or healthcare campuses, the terminal serves as a multifunctional security checkpoint by combining biometric authentication with body temperature measurement to detect potential health risks at entry points. Acting as a smart card reader and temperature detection device, it ensures only authorized personnel with valid credentials and acceptable health status gain access, mitigating infection risks. Integration with existing security management systems enables real-time alerts and data synchronization, supporting comprehensive access logs and emergency response. The device’s contactless operation supports stringent hygiene standards while facilitating streamlined visitor or employee validation workflows in settings where health surveillance and security are paramount.
FAQ
What customization options are available for the Cardlan facial recognition temperature detection smart terminal?
The smart terminal supports customizable biometric modules, including optional facial recognition and temperature detection features to suit diverse access control needs. Software and hardware configurations, such as NFC, QR code support, and network interfaces, can be tailored to specific project requirements involving the ticket validator and access control functions.
How is the Cardlan smart terminal installed and integrated with existing systems?
Installation involves mounting the device at access points with appropriate power (DC 8V–50V) and network connectivity via 4G, WIFI, or Ethernet. The terminal’s multiple communication interfaces and Android-based architecture allow seamless integration with management platforms for real-time data handling and interaction with card readers or ticket terminals.
What maintenance and warranty services does Shenzhen Cardlan Technology provide?
Shenzhen Cardlan offers a one-year warranty for hardware and lifetime software maintenance, ensuring continuous operation of the ticket validator system. Technical support is available 24/7, including remote troubleshooting and on-site service when necessary, helping maintain system reliability and performance over time.
Which card types and ticket formats are supported by the Cardlan terminal for access control?
The device supports RFID cards compliant with ISO-14443 Type A/B standards, including MiFare Classic and CPU cards, plus NFC and QR code ticket validation. This multi-format support ensures compatibility with various card readers and smart card readers commonly used in public transit and access management systems.
