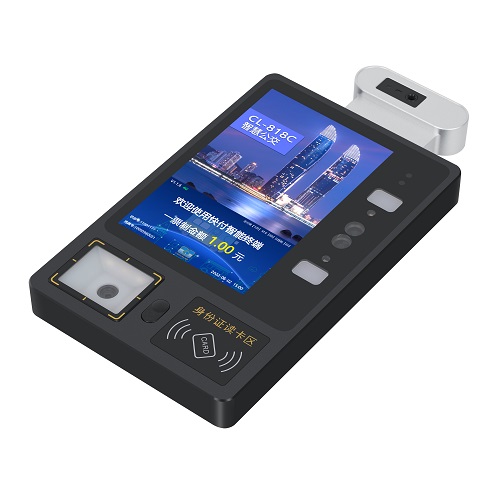

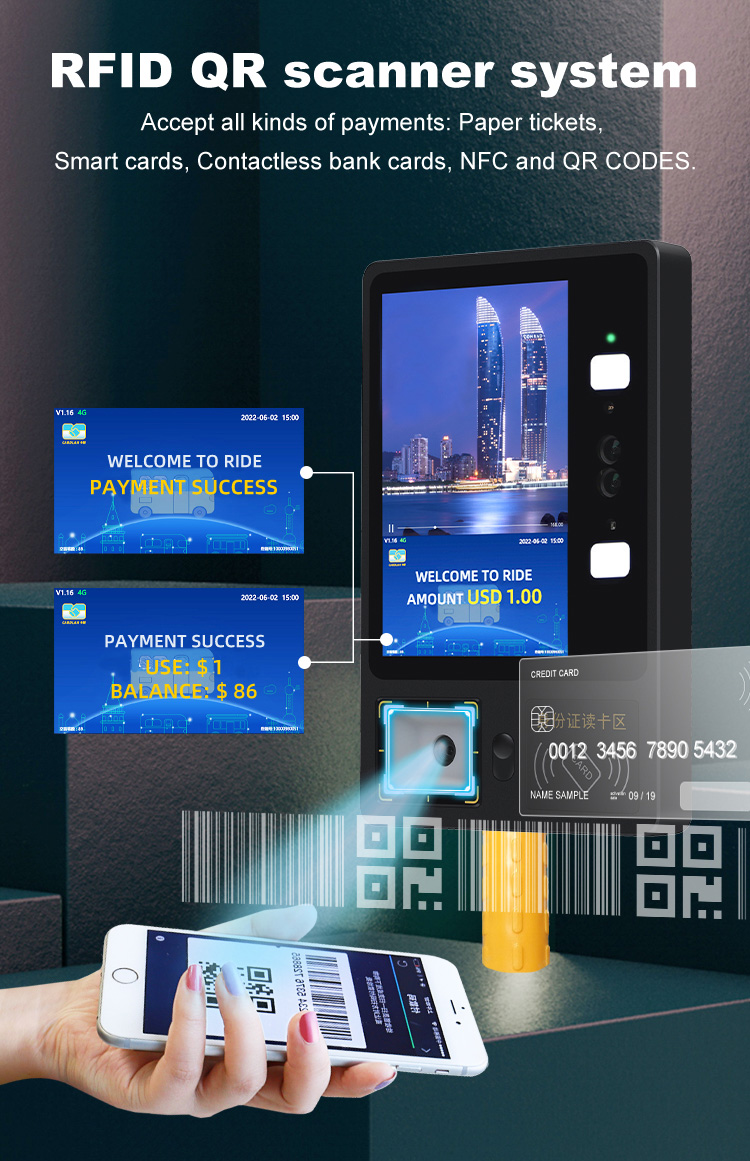

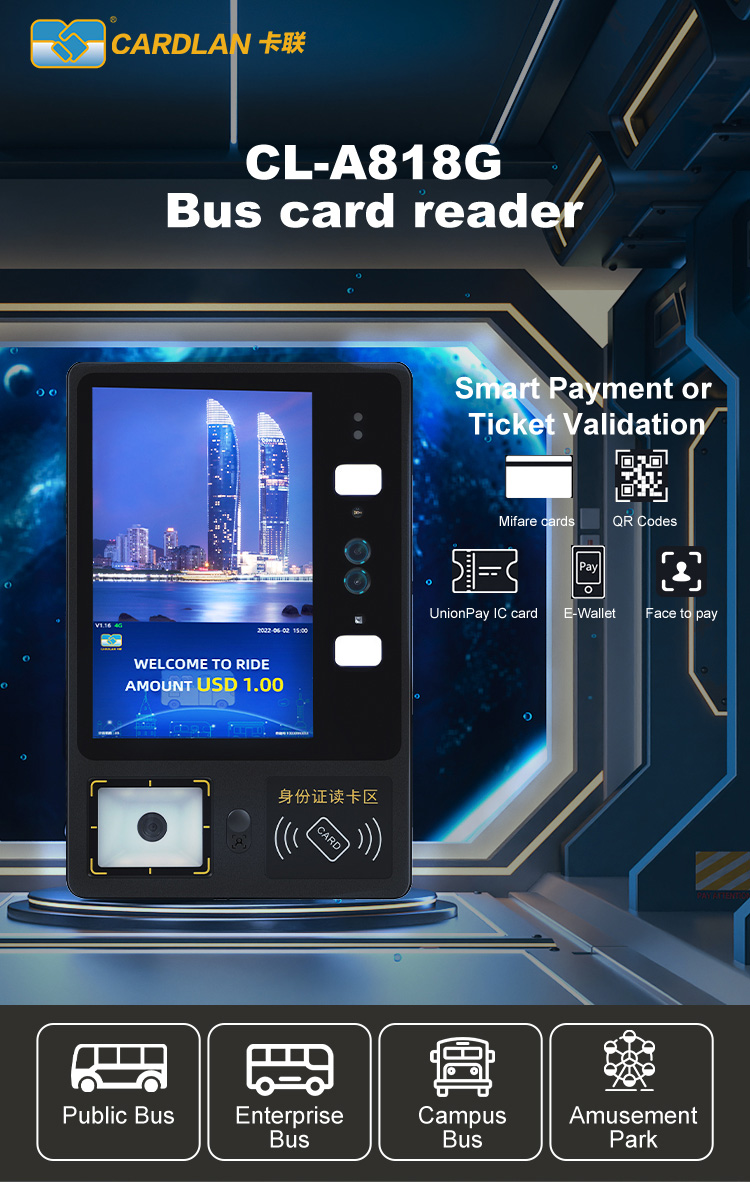

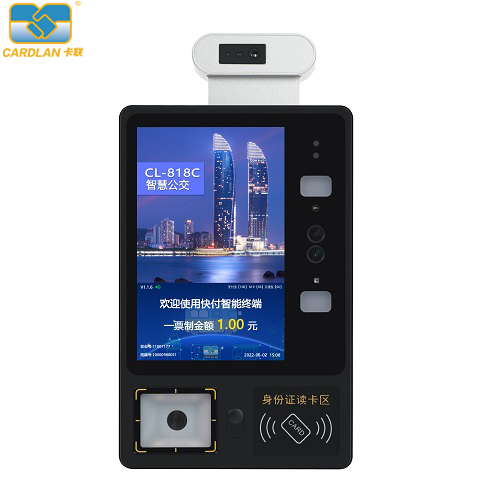

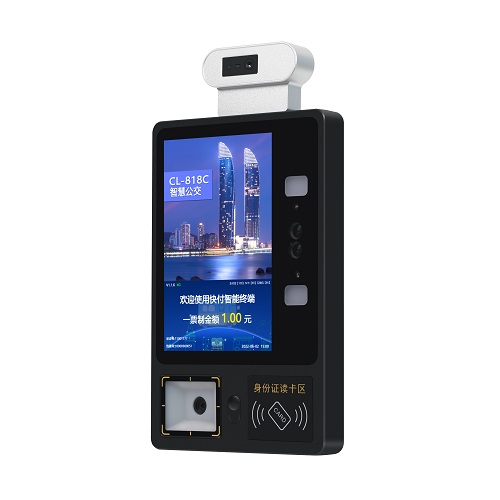

CL-A818G smart bus validator can support RFID card, QR scanning with GPS positioning module, support 4G, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
l Industrial park
l Support face recognition: face information can be recognized through the camera for consumption and other operations;(Optional)

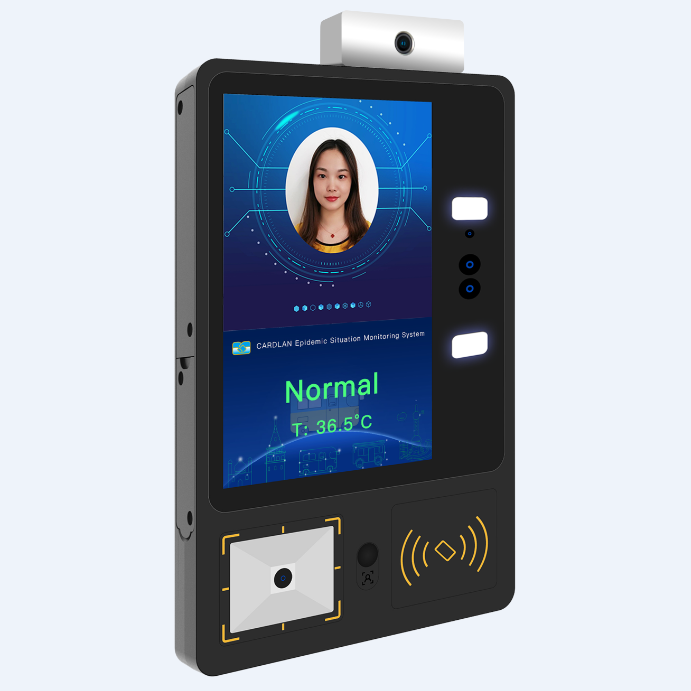

l Support temperature measurement: the temperature of the human body can be measured through the temperature recognition module and displayed on the interface of the intelligent communication terminal;(Optional)
l Support wireless communication transmission: connect to computer management software through the communication module to perform operations such as proofreading time, downloading blacklists, and collecting data;
l Terminal with wireless communication module can realize real-time data upload, and terminal without wireless communication module can upload transaction records through U disk or USB connection.
l Query consumption details: query consumption details records on the terminal based on card number, time, operator number, etc .
l Consumption data Statistic : statistics of consumption records according to card number, time, operator number and other conditions.etc.
|
Name： |
Smart Terminal |
|
Operating System： |
Android7.1 |
|
CPU： |
Dual Cortex-A72 large core + four Cortex-A53 small core structure and Mali T864 |
|
RAM： |
DDR3 2G |
|
Data storage： |
eMMC 16G（default）、Max support TF card expend to 64G |
|
Storage |
|
|
Data Capacity: |
more than 2 million detailed data for console storage, extensible |
|
Blacklist： |
2 hundred million，extensible |
|
Working Environment
|
|
|
Working Temperature: |
-25℃~65℃ |
|
Storage Temperature: |
-40℃~85℃ |
|
Working Humidity: |
0-90%（non-condensing） |
|
Physical Parameter
|
|
|
Dimension： |
270x169x72mm |
|
Housing material: |
|
|
LCD display |
|
|

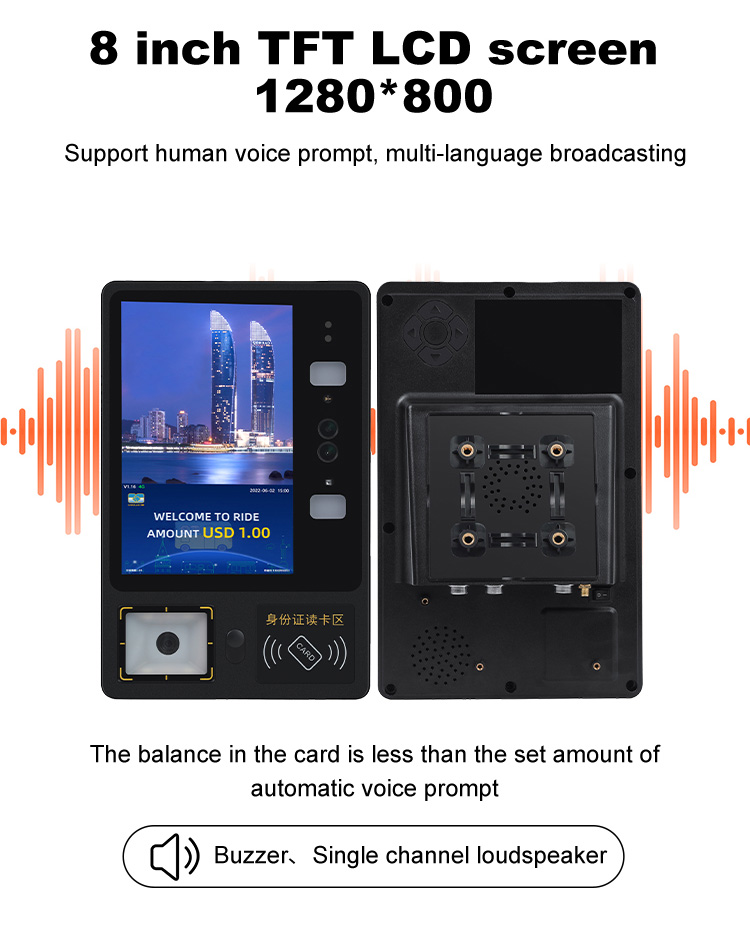

Display： |
8 inch TFT-LCD, 1280*800 |
|
Indicator light： |
Red and green |
|
Camera |
|
|
Scanning： |
Wide angel/QR /customized |
|
Facial recognition |
Binocular, wide dynamic face recognition camera, default feature library capacity: 20,000 |
|
Voice Prompt |
|
|
Sound Prompt： |
Buzzer、Single channel loudspeaker |
|
Voice Prompt： |
16KHz,16bit single channel voice prompt |
|
Temperature detection
|
|
|
Detection accuracy and distance |
Accuracy: ± 0.3 Distance: 5cm, 75cm (default), 1.2m. |
|
Power Supply Specification
|
|
|
Working Voltage： |
DC 8V-50V |
|
RFID |
|
|
Support standard： |
ISO-14443 Type A/B |
|
Reading Distance： |
0~50mm |
|
Working Frequency： |
13.56Mhz |
|
Card Type： |
MiFare Classic, CPU card |
|
Scanning Function |
|
|
Support Type |
Support 1D code and 2D code |
|
Face Recognition |
|
|
Face recognition library |
Front-end algorithm support 1:20000 |
|

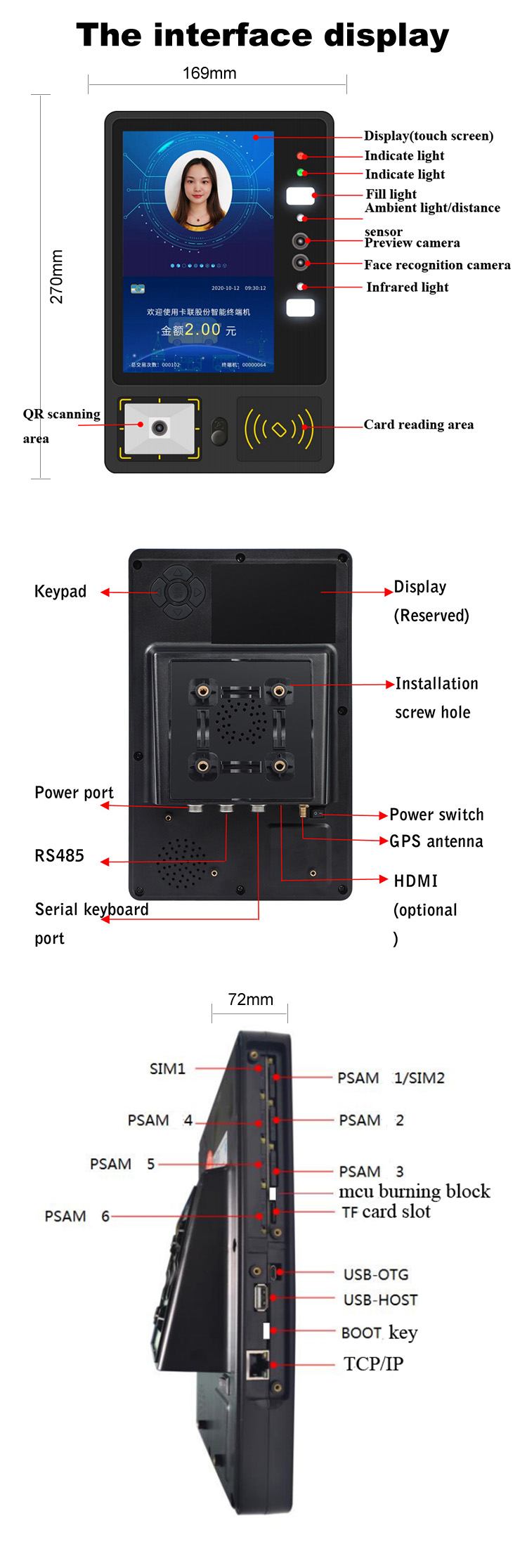

Interface |
|
|
Communication Interface： |
USB-HOST、USB-OTG、RS485 and TTL-232 optional |
|
Multi-screen display interface |
HDMI(optional) |
|
Positioning Function
|
|
|
Position way： |
GPS、beidou （optional） |
|
Working Mode |
|
|
Working Mode： |
Stand-alone or connect to server |
|
Power Consumption
|
|
|
Power Consumption: |
≤15 W |
|
Warning Function |
|
|
Warning Function |
Warning when card balance is insufficient or data memory is full |
|
Wireless Communication |
|
|
Communication mode
|
2G、3G、4G and USB collection,(WIF and bluetooth optional) |
|
Main features |
Android 7.1 4G network, Ethernet, WIFI, Bluetooth, scan code, face recognition, temperature measurement |
