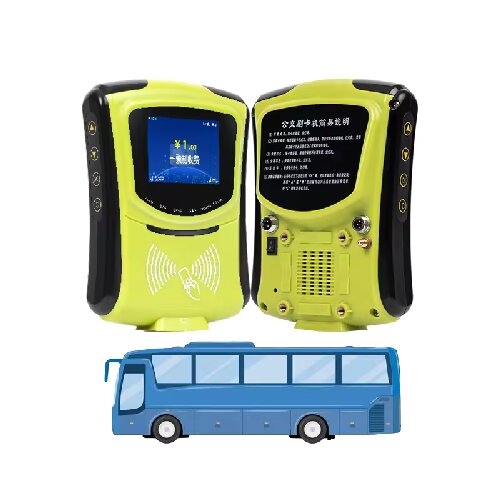

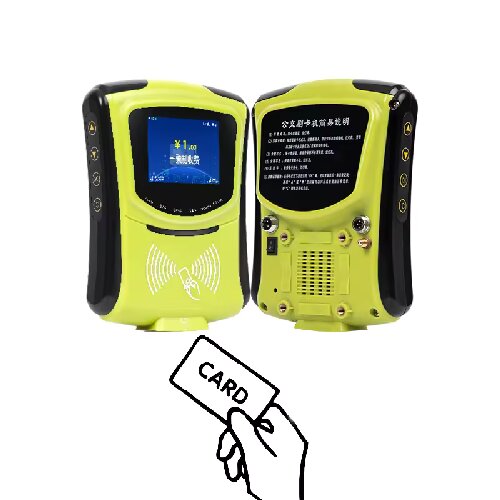

Model:
|
CL1306 Bus card Reader
|
|
Dimension:
|
200*151*61.5mm
|
|
Material:
|
Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference
|
|
Display:
|
3.5 inch LCD display，320x240
|
|
Operating system:
|
Linux 2.6 system
|
|
CPU:
|
N32905 processor，ARM9 core @ 240MHZ
|
|
Memory:
|
32MBytes SDRAM，512MB NANDFlash
|
|
Data capacity:
|
259840 pcs of detailed data for console storage, unlimited data at GPRS storage
|
|
Card capacity:
|
91,880,000 pcs
|
|
Black list:
|
91,880,000 pcs (download thru PC with USB)
|
|
Working Voltage:
|
DC 8V-50V
|
|
Operating temperature:
|
-40℃~75℃
|
|
Storage temperature:
|
-45℃~85℃
|
|
Humidity:
|
0-95% RH non condensing
|
|
Lighting:
|
Red, Green light
|
|
Sound prompt:
|
Buzzer, single channel speaker (voice report)
|
|
Voice report prompt:
|
16KHz,16bit single channel voice report prompt
|
|
Keypad:
|
4 command buttons
|
|
RFID:
|
Can read and write ISO14443 TYPE A\B Electronic tag (Incl. Combi-Card )
|
|
Read card distance:
|
0~50mm
|
|
Supporting card:
|
Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card
|
|
Frequency:
|
13.56MHz
|
|

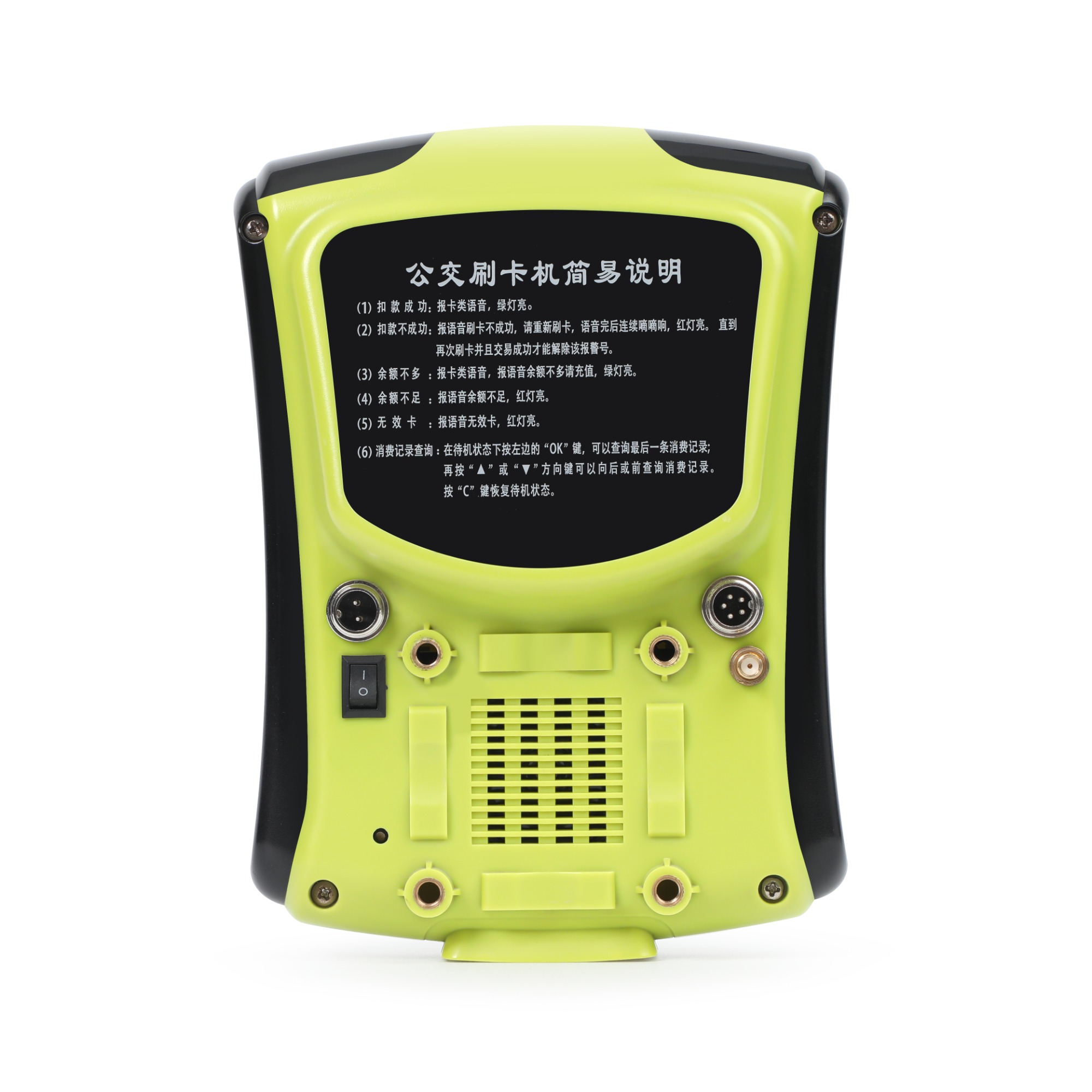

Interfaces/Connectors:
|
RS232, RS485, USB
|
|
Printer modules:
|
Can be connected to slip printer-POS58
|
|
Width of receipt:
|
Based on printer configuration
|
|
Positioning mode:
|
GPS
|
|
Power consumption:
|
≤10W
|
|
Communication Modules:
|
GPRS(900Mhz/1800Mhz), or CDMA(800Mhz)
|
|
WIFI：
|
Supporting 802.11n/b/g standards,150Mbps,2.4Ghz
|
|
UnionPay:
|
Compatible for PBOC3.0 UnionPay card
|
|
Upgrading:
|
Connect USB to PC, upgrade with GPRS
|
|
Data collection:
|
WIFI, GPRS,3G,4G, USB
|

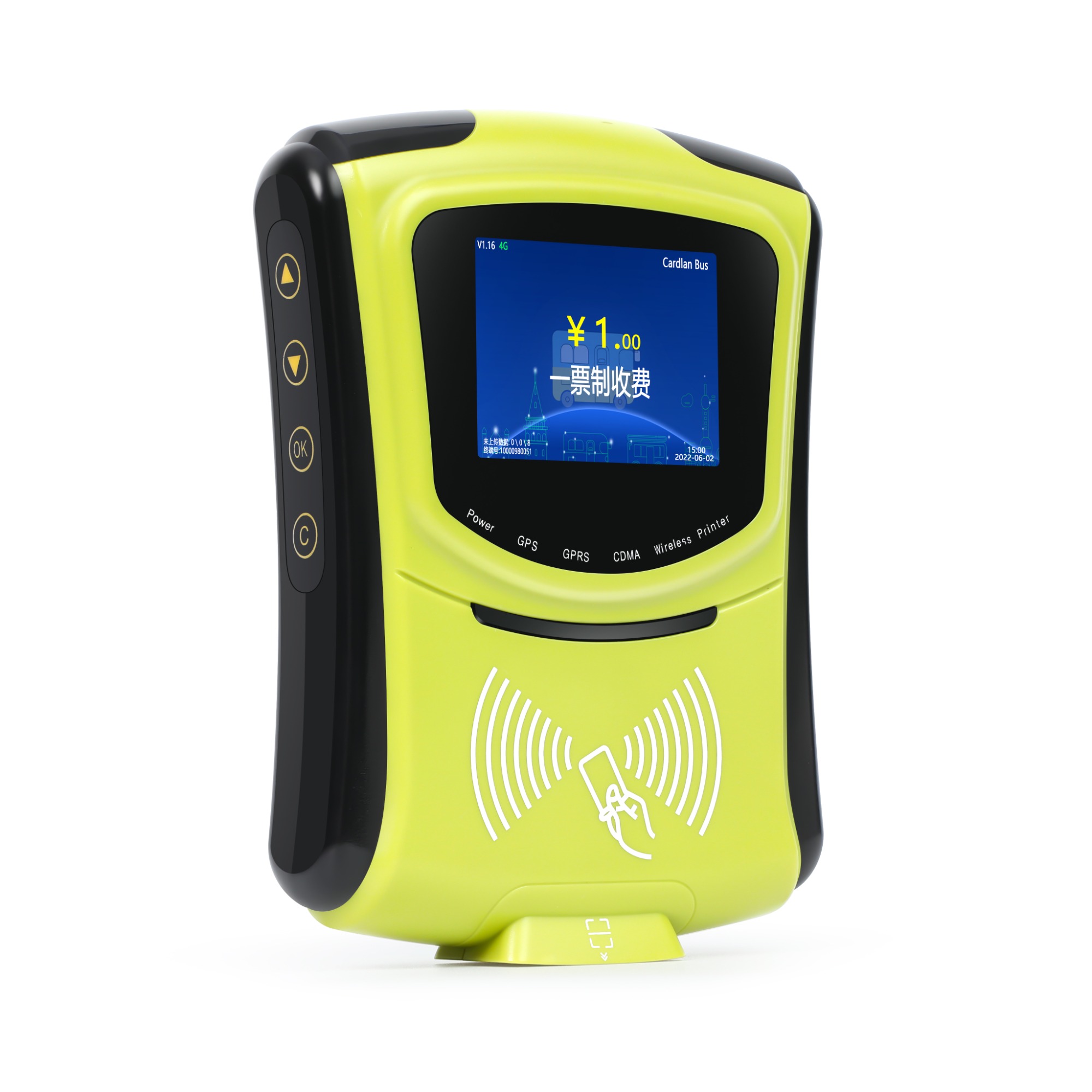

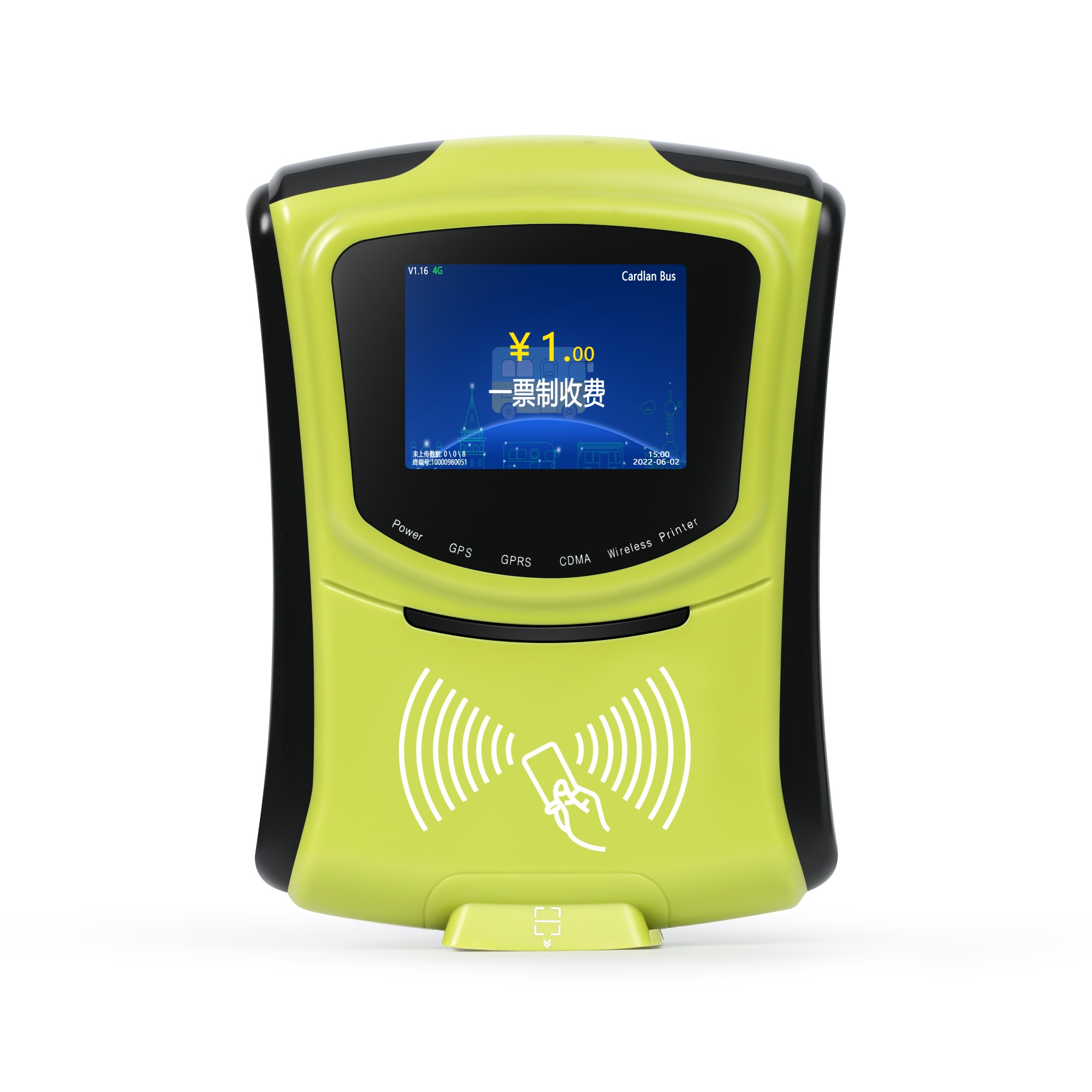

Large 35" Inch LCD with Integrated NFC & QR Payment
The CARDLAN NFC Validator features a vibrant 35" inch LCD display paired with a built in contactless IC/ID card reader and QR-code engine. This mobile smart card reader terminal allows passengers to tap or scan using RFID, NFC, or QR methods—ensuring fast, intuitive fare collection on public buses.
Multi-Mode Card Support & Wireless Connectivity

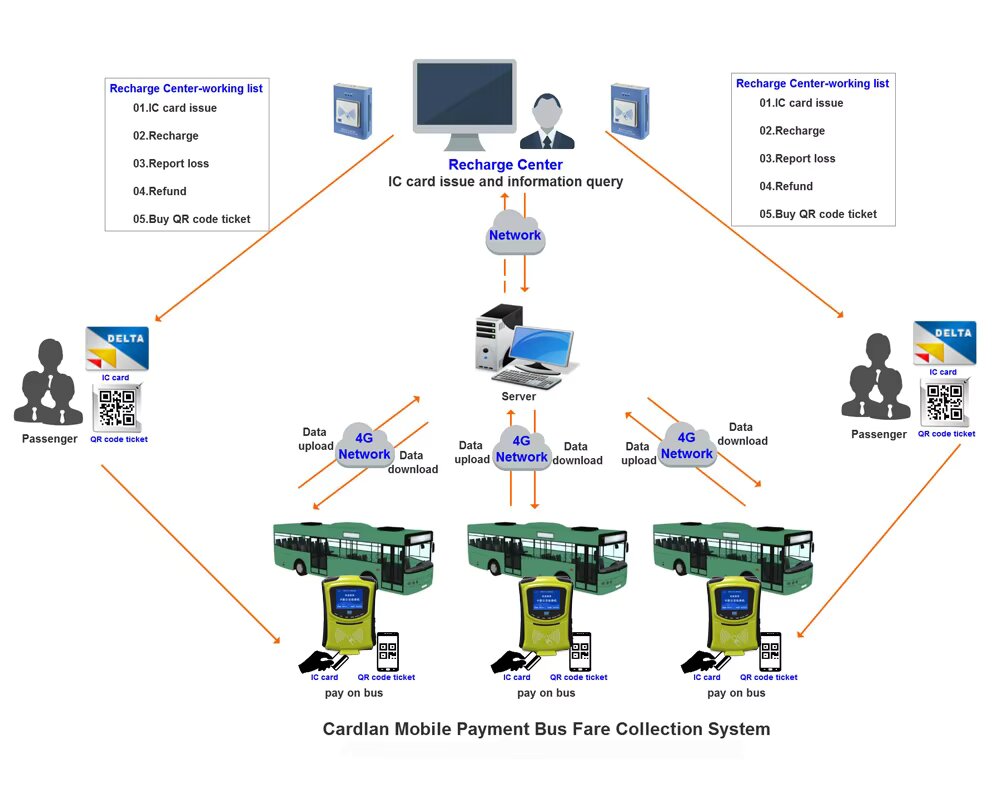

As a universal smart card reader, this terminal supports a wide range of fare media—IC/ID contactless cards, MIFARE, EMV-Lite cards, plus QR code and barcode scanning. Equipped with 4G, Wi-Fi, and Bluetooth, it enables remote monitoring, real-time data synchronization, and OTA updates for effortless deployment.
Transit-Grade Design for Reliable Operation
Built specifically for public transportation, the validator’s rugged casing withstands daily wear and vibration. It offers touch-friendly UI, clear fare messaging on the LCD, configurable alerts, and is compatible with common transit payment platforms. As an on board wireless smart card reader, it helps streamline boarding processes and reduce queues.
Product Advantages
High Impact 35” Display for Enhanced Interaction
Engage passengers with clear fare details, dynamic route maps, tips, branding, or advertisements on the large integrated screen.
Secure Contactless NFC & RFID Transactions
Offers reliable contactless smart reader performance with secure IC/ID, RFID, and MIFARE support—ideal for busy transit environments.
QR & Barcode Scanner Built-In
Accept mobile tickets, e wallets, coupons, and QR based passes alongside traditional smart cards—no separate device needed.
Full Wireless Connection Suite
4G, WiFi, and Bluetooth support facilitate real time transaction uploads, performance tracking, and cloud updates without manual downloads.
Universal Flexibility
Acts as a universal smart card reader—supports multiple fare systems and can be easily integrated into existing buses or retrofit projects.
Robust Transit-Grade Build
Designed for durability—resistant to vibration, moisture, and continued heavy passenger use. Easy installation via standard transit mounts.ABOUT US
Shenzhen CARDLAN Technology Co. Ltd, founded in 2006 with over $1.6 million in registered capital, is a pioneer in intelligent fare and smart card systems. With 19+ years of manufacturing excellence, we specialize in bus card payment hardware, smart ticket validation, urban all-in-one systems, and NFC POS terminals.
An early MOHURD interconnection certified enterprise in China, CARDLAN adheres strictly to ISO 9001:2000 quality standards. Our leadership includes MBA/EMBA-trained executives and top-tier R&D engineers under Chairman Quan Zhang. We offer 24/7 online support, local installation services, 1-year hardware warranty, and lifetime software maintenance—supporting clients across Asia and beyond.
Contact us now for a live demo, quotes, or integration assistance—let’s build smarter transit together!
FAQ
Does it support both NFC cards and QR codes?
Yes—the terminal is a contactless smart card reader supporting IC/ID and MIFARE cards, and includes a built-in QR/barcode scanner.
Can the LCD display ads or route info?
Absolutely. The 35" inch screen supports multimedia content—maps, fare info, promotions—and can be updated remotely via Wi Fi or 4G.
What connectivity options does it offer?
Equipped with 4G LTE, Wi-Fi, and Bluetooth—all support online payment upload, remote monitoring, and over-the-air firmware updates.
Is this rugged enough for bus environments?
Yes. Built with transit-grade hardware rated to handle vibration, daily use, and variable climate conditions.
What fare media formats are supported?
Supports contactless IC/ID cards (MIFARE, EMV-Lite), RFID smart cards, and dynamic QR codes from mobile wallets.
What support and warranty terms are included?
We offer 1-year hardware warranty, lifetime software upgrades, 24/7 online assistance, and optional door-to-door installation in select regions.
