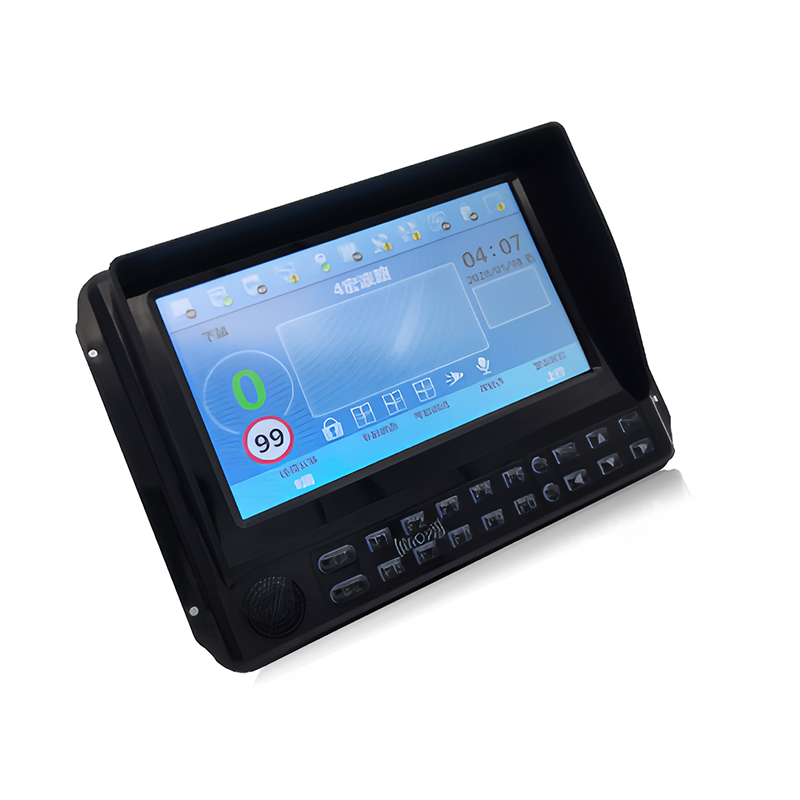

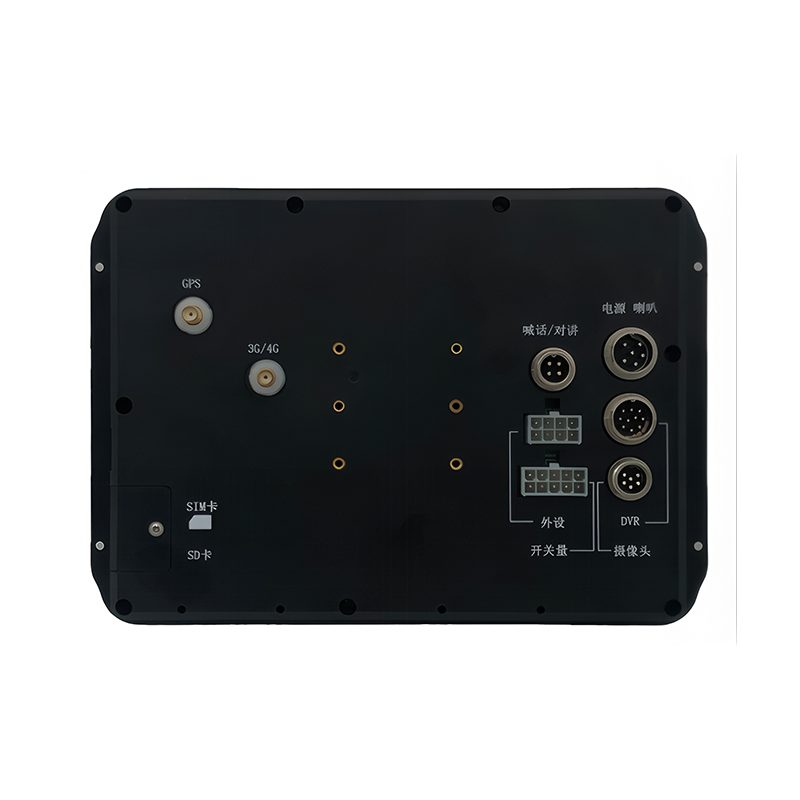

The CL-K3 intelligent bus on-board terminal is a cost-effective intelligent dispatching on-board terminal developed by our company. It integrates functions such as intelligent dispatching, automatic station announcement, reversing and door opening monitoring, and automatic shift scheduling management. The screen adopts a 7-inch full true-color high-definition TFT_LCD screen with touch function. It can be connected to 2 cameras and automatically switch to the door video upon arrival at the station. Rich peripheral devices CAN be connected to on-board DVR, CAN bus, LED screen, IC card reader, coin slot machine, passenger flow statistics and other on-board equipment.
The product is flexible and convenient to install and simple to maintain on a daily basis. Adopting a modular design, it is completely tailored to the particularity and complexity of the environment for public transportation vehicles and can be widely applied in the urban public transportation industry.
Product Features

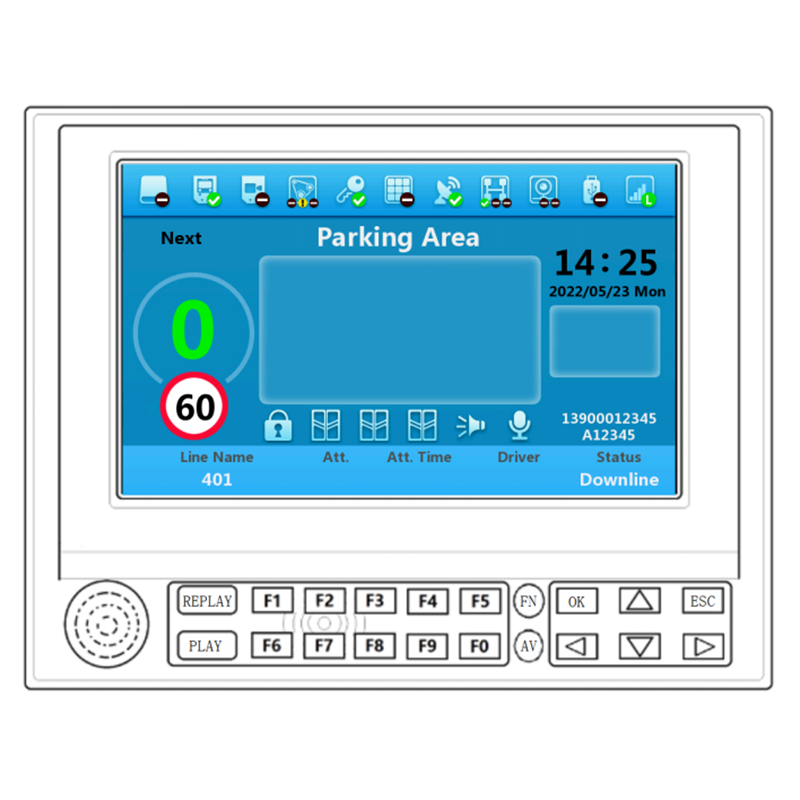

- 7-inch touch screen display, flexible operation, video images and dispatching information displayed on one screen;
- Multi-line configuration: The on-board terminal system stores the voice and configuration information of all 400 lines, making it convenient to adjust the operation lines. It is possible to achieve mutual copying of data among the station announcers and also to remotely change the line voice.
- The equipment supports local line switching to achieve cross-line operation and dispatching functions. The equipment supports remote switching of line instructions from the dispatching platform to achieve cross-line operation and dispatching functions.
- Supports speed limit between stations, area speed limit, road section speed limit and time period speed limit;
- The advertising voices for each line and station can be independently configured, and each station can be equipped with more than 20 voice advertisements.
- Support local upgrade and remote upgrade;
- Supports a wide voltage input range of DC8-36V, suitable for 12V and 24V vehicles;
- Supports multiple wireless communication methods such as 3G and 4G (optional);
- Supports dual-mode positioning of GPS/BD;
- The display screen brightness can be automatically adjusted over time.
- The number of keys is 20.
- Dedicated DVR interface, which can be used as a DVR display screen and operating handle;
- 4G network can be shared with DVR
