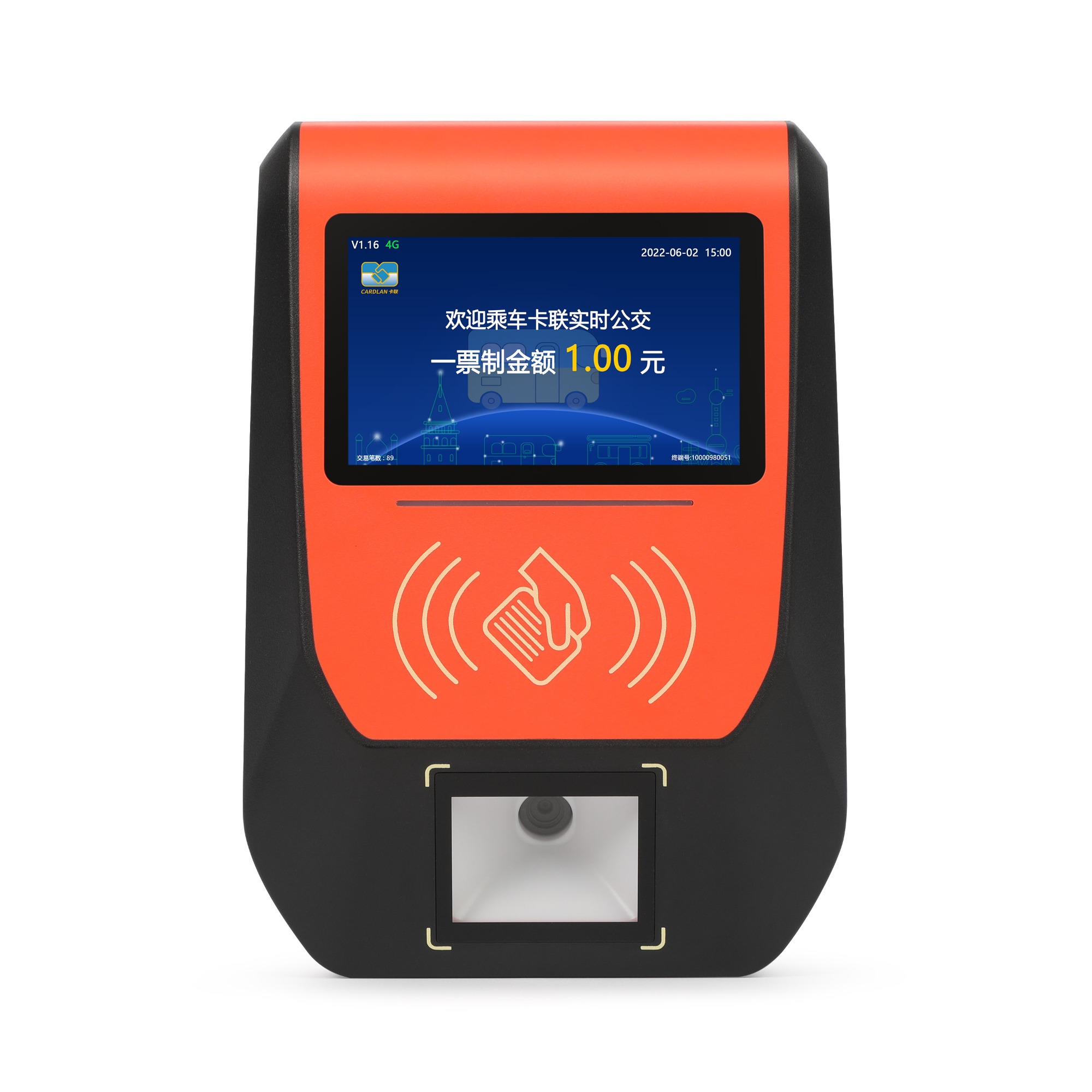

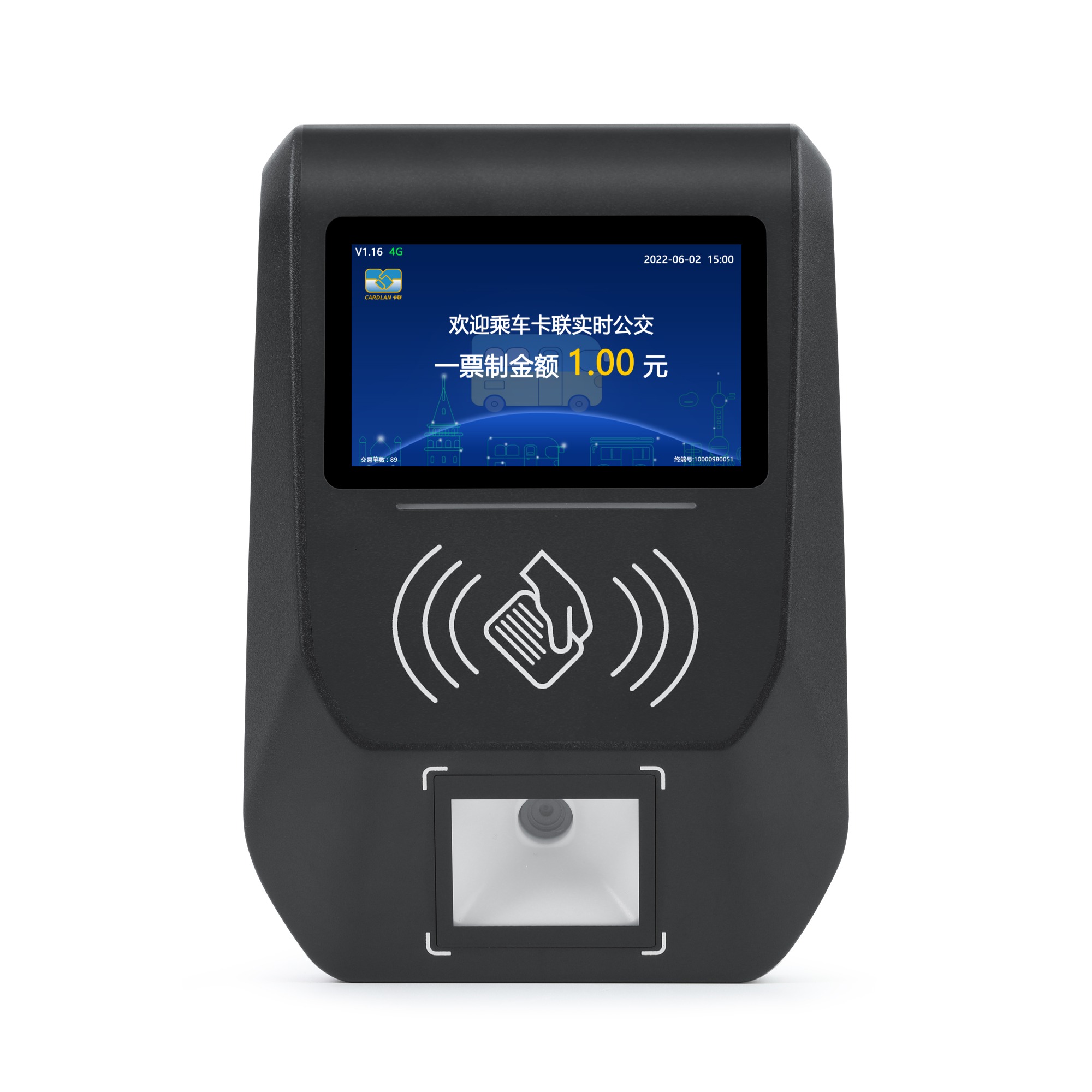

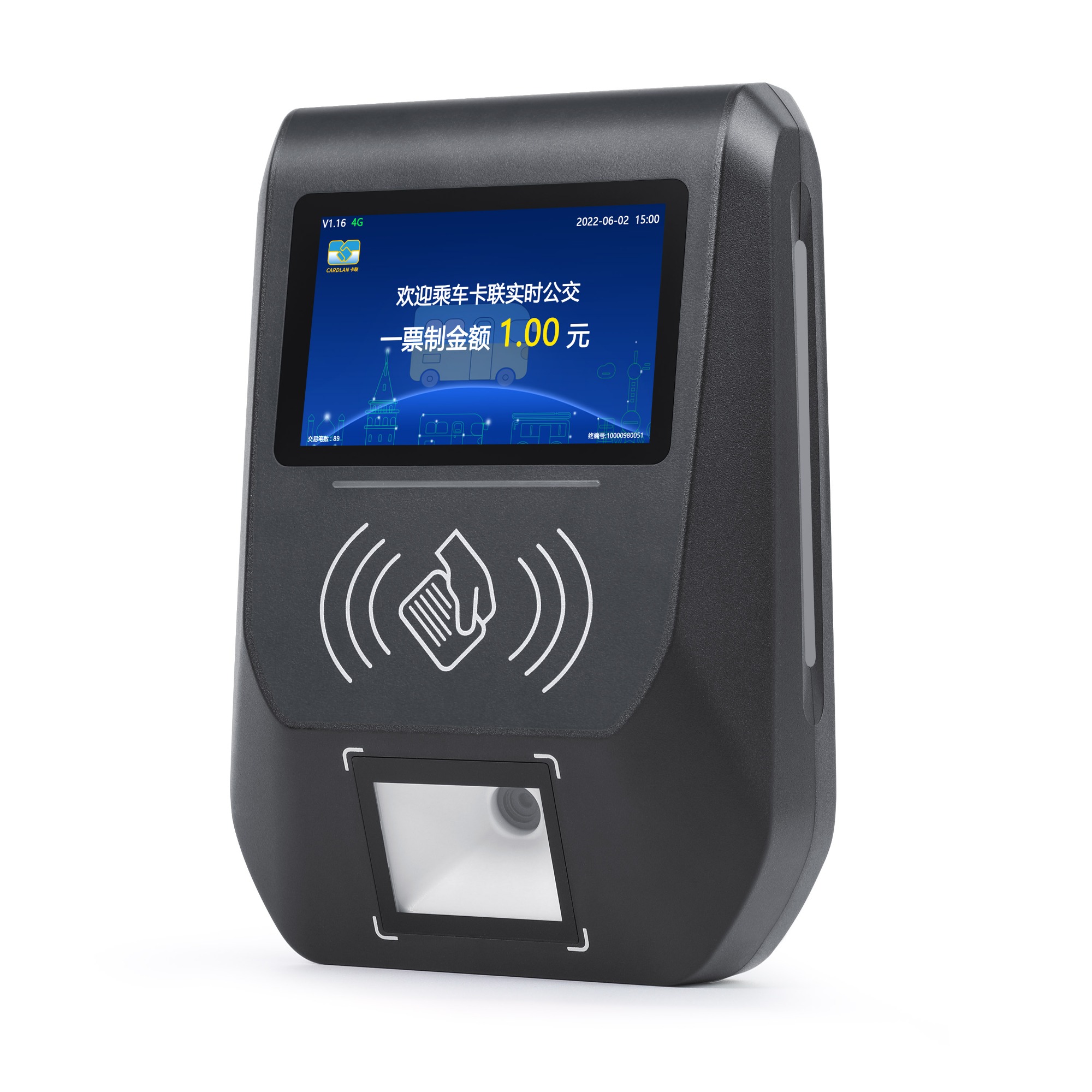

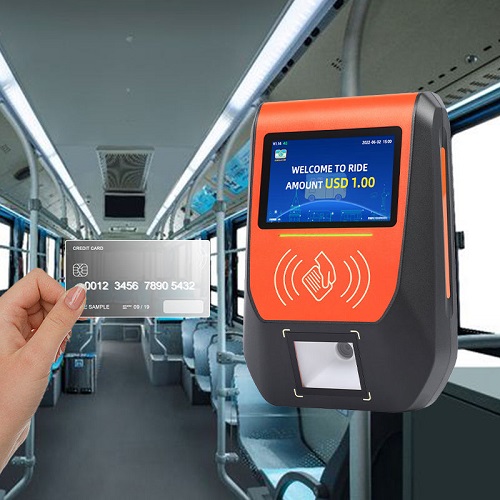

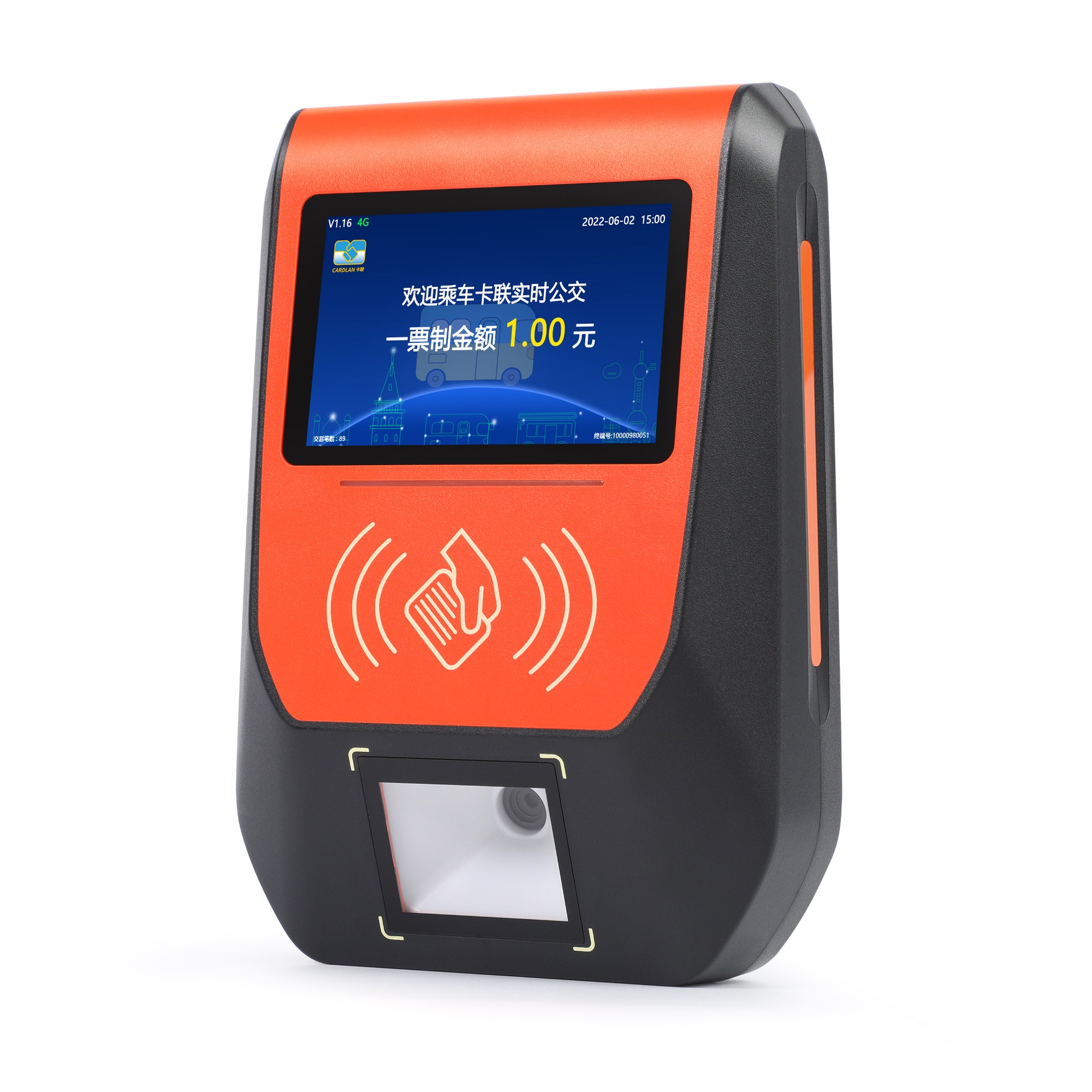

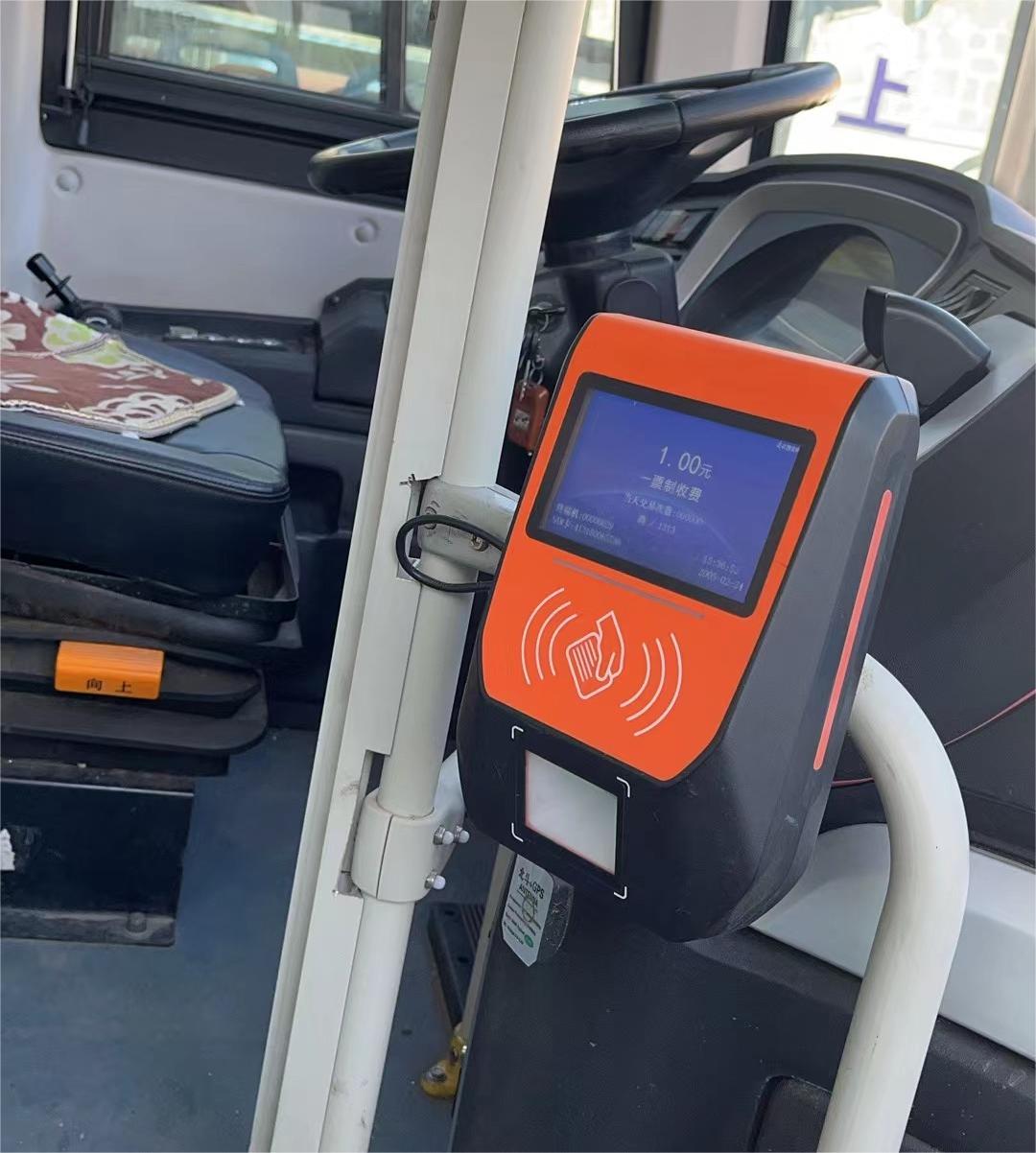

CL-A0618K smart bus validator can support RFID card and QR code, with GPS positioning module, support 4G, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
l Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection.
l Support transaction detail inquiry.
l Support consumption details and statistics query, according to card No., time, operator No., etc.
l Support external keyboard to realize zonal fare collection payment.
| Name： | Smart terminal |
| Operating System： | Android13 |
| CPU： | Quad-core 64-bit Cortex-A53 processor, main frequency up to 2.0GHz |
| GPU | Adreno 702 |
| RAM | 2GB LPDDR4X RAM |
| Memory： | 16GB eMMC Flash (default)、、Max support 128G TF card |
| Memory Function | |
| Data Capacity： | More than 2 million detailed data for console storage, extensible |
| Blacklist： | Two million(default), extensible, more with TF card |
|
Working Environment |
|
| Working Temperature: | -25℃~65℃ |
| Storage Temperature: | -40℃~85℃ |
| Working Humidity: | 0-90%（non-condensing） |
| Physical Parameter | |
| Dimension: | 240x170x83mm |
| Housing material: | Engineering plastics |
| LCD Display | |
| Display： | 5 inch TFT-LCD display, 800*480 |
| Indicator light： | Red and green |
| Camera | |
| Scanning： | Wide angel/QR /customized |
| Distance： |
3cm -15cm |
| Voice Prompt |
|
| Sound Prompt： |
Buzzer、Single channel loudspeaker |
| Voice Prompt： |
16KHz,16bit single channel voice prompt |
| Power Supply Specification |
|
| Working Voltage： |
DC 8V-48V with reverse connection, over voltage, over current automatic protection and automatic recovery, power off delay shutdown function. |
| RFID Function |
|
| Support Type： |
Can read and write ISO14443 TYPE A\B Electronic tag |
| Reading Distance： |
0~50mm |
| Working Frequency： |
13.56Mhz |
| Card Capacity： |
99999999 pcs |
| Card Type： |
Mifare classic card, CPU card |
| Interface |
|
| Communication Interface： |
USB-HOST、USB-OTG、RS485 and TTL-232 choose one |
| Relay output: |
2 Relay (Max 4) this is optional function |
| Printing Function |
|
| Printing module： |
Support external POS58printer (need 5pinaviation plug turn DB9 cable) |
| Width of receipt: |
58mm |
| Positioning Function |
|
| Position way： |
GPS, Beidou positioning , Optional GLONASS |
| Working Mode |
|
| Working Mode： |
Stand-alone or connect to server |
| Power Consumption |
|
| Power Consumption: |
≤10 W |
|
Communication Function |
|
| Wireless Communication |
2G/3G/4G optional, 4G default |
| WIFI(optional) |
Wi-Fi 802.11 a/b/g/n/ac |
| Bluetooth |
BT 5.0 BLE |
| Warning Function |
|
| Warning Function |
Warning when card balance is insufficient or data memory is full |
| Data Collection Function |
|
| Collection mode |
4G and USB collection; WIF and Bluetooth optional |
| Relay |
Relay output for turnstile/gate control |
About Us
At CARDLAN, we are a leading provider of advanced transport solutions, specializing in RFID and smart ticketing systems for bus, metro, and other public transport applications.
Core Manufacturing Capabilities & Quality Assurance
With over 19 years of manufacturing experience, CARDLAN delivers high-quality products that adhere to international standards. Our products, including smart bus ticket validators, RFID ticketing systems, and contactless payment solutions, are developed under strict ISO 9001:2000 guidelines. Our factory is equipped with the latest technology and automated machinery to ensure high production efficiency and consistency in quality.
Production Strength
Our state-of-the-art facilities span over 20,000 square meters and are capable of producing over 1 million units annually. With a dedicated team of over 300 professionals, we focus on continuous innovation and research to meet the diverse needs of our global customers.
Sustainable Development Measures
We are committed to sustainability by implementing eco-friendly production methods and reducing waste. Our products are designed to be energy-efficient and have a long lifecycle, contributing to a cleaner environment.
Customer Cooperation Process
From the initial inquiry to post-sales support, our customer cooperation process is streamlined and customer-centric. We offer tailored solutions, quick delivery times, and full after-sales support to ensure complete satisfaction.
Global Service Capabilities
As a global enterprise, CARDLAN serves customers across 30+ countries. We have established a reliable logistics network, ensuring timely delivery to markets worldwide and offering multilingual customer service for better communication.
Partner with CARDLAN today for cutting-edge, reliable, and sustainable transport solutions. Reach out to us for customized offerings that best fit your business needs.
FAQ
Who are we?
We are CARDLAN, a leading manufacturer of RFID and smart ticketing solutions for public transport systems. With over 19 years of expertise, we provide high-quality, innovative products that enhance ticketing and payment systems globally.
How can we guarantee quality?
We adhere strictly to ISO 9001:2000 quality standards. All our products undergo rigorous testing at multiple stages of production, ensuring they meet the highest industry standards for reliability and performance.
What can you buy from us?
You can purchase a wide range of transport solutions, including bus validators, ticket vending machines, RFID card readers, contactless payment systems, and smart ticketing solutions designed for modern public transport.
Why should you buy from us and not from other suppliers?
CARDLAN stands out for its cutting-edge technology, high production standards, and a track record of successful international deployments. We offer customized solutions, excellent customer service, and a commitment to innovation and sustainability.
What services can we provide?
We offer a full suite of services, including product design and customization, installation, technical support, and post-sales service. We ensure that our solutions meet the specific needs of each customer, backed by ongoing technical support.
Contact us today to learn more about how the CARDLAN New Android 13 618K Smart Bus Ticket Validator can help improve efficiency and customer satisfaction in your transport system. Reach out for bulk orders, customized solutions, and further details!
