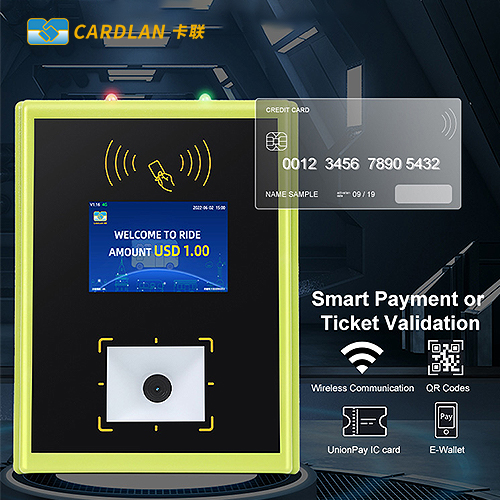

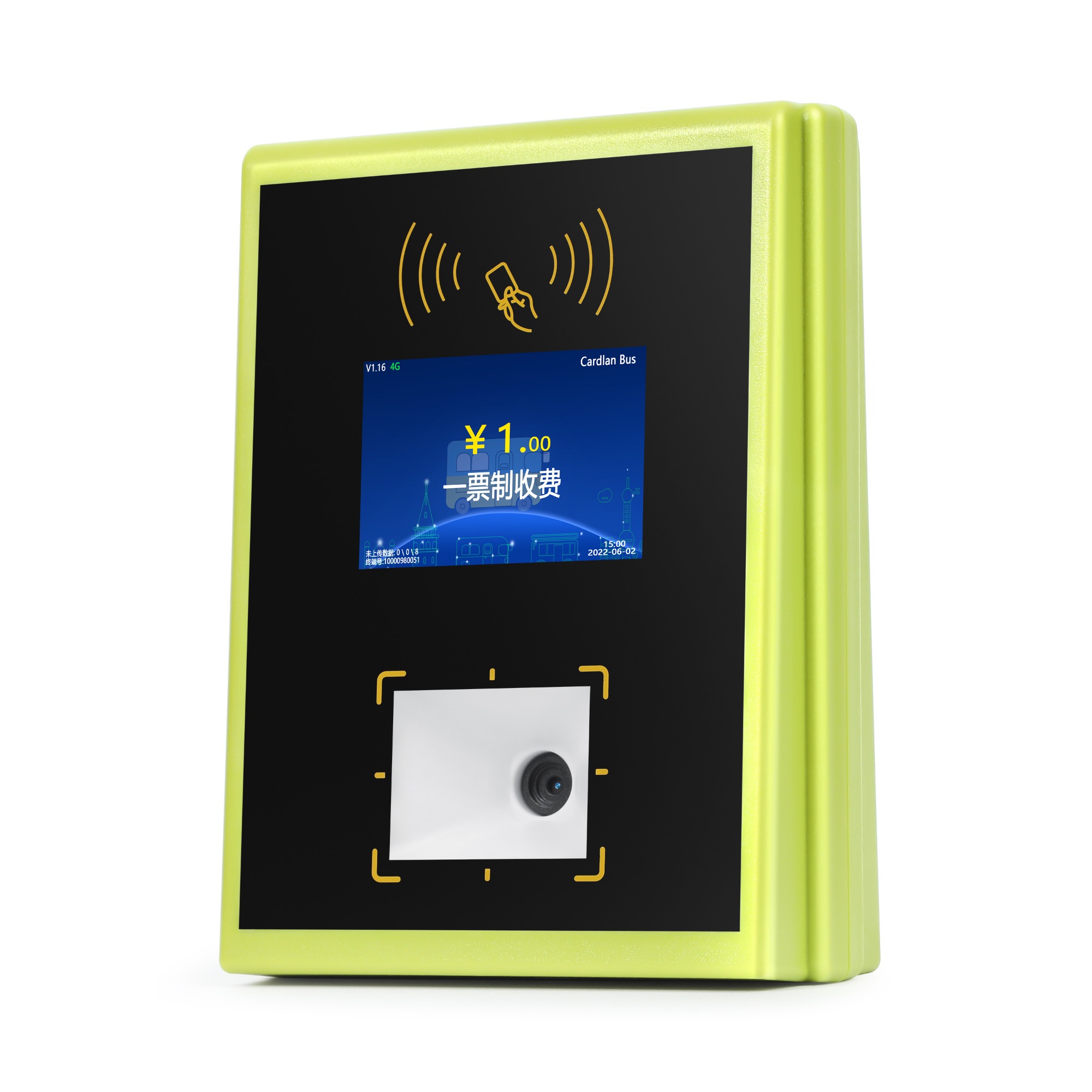

1. Application
CL-0409C bus POS can support RFID card,with GPS positioning moduleand QR code scanner, support 4G,WIFI wireless communication etc.Can be used for electronic payment or card validation in following field：

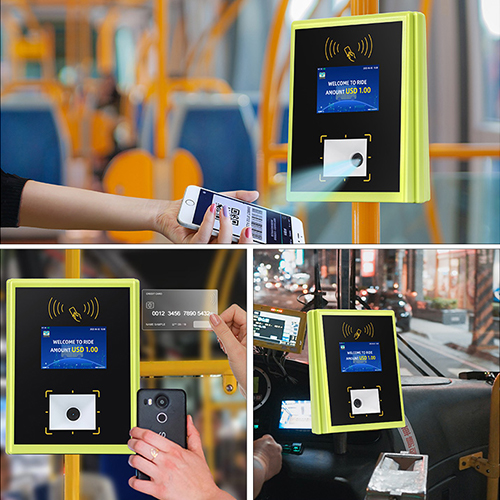

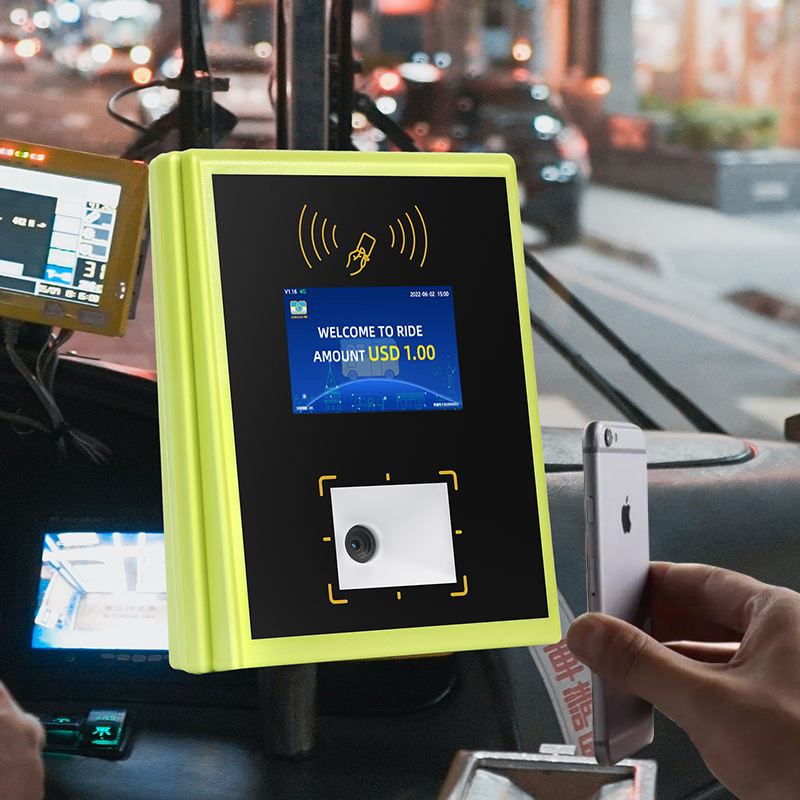

l Public transport IC card payment
l Scenic spots/amusement park card payment
l Employee shuttle bus card validation
l Safety school bus IC card system
2. Functional features
l Support wireless communication,remote connect to server management software to realize real time time-revision,black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection.
l Support live voice prompts, supports 15 kinds of voice prompts：such as "student card","employee card".
l Support consumption details and statistics query,according to card No.,time,operator No.,etc.
Parameter
|
Model:
|
CL1306 bus pos terminal
|
|
Dimension:
|
200*151*61.5mm
|
|
Material:
|
Engineering Plastics, Anti static electricity coating design, be protected from high-frequency interference
|
|

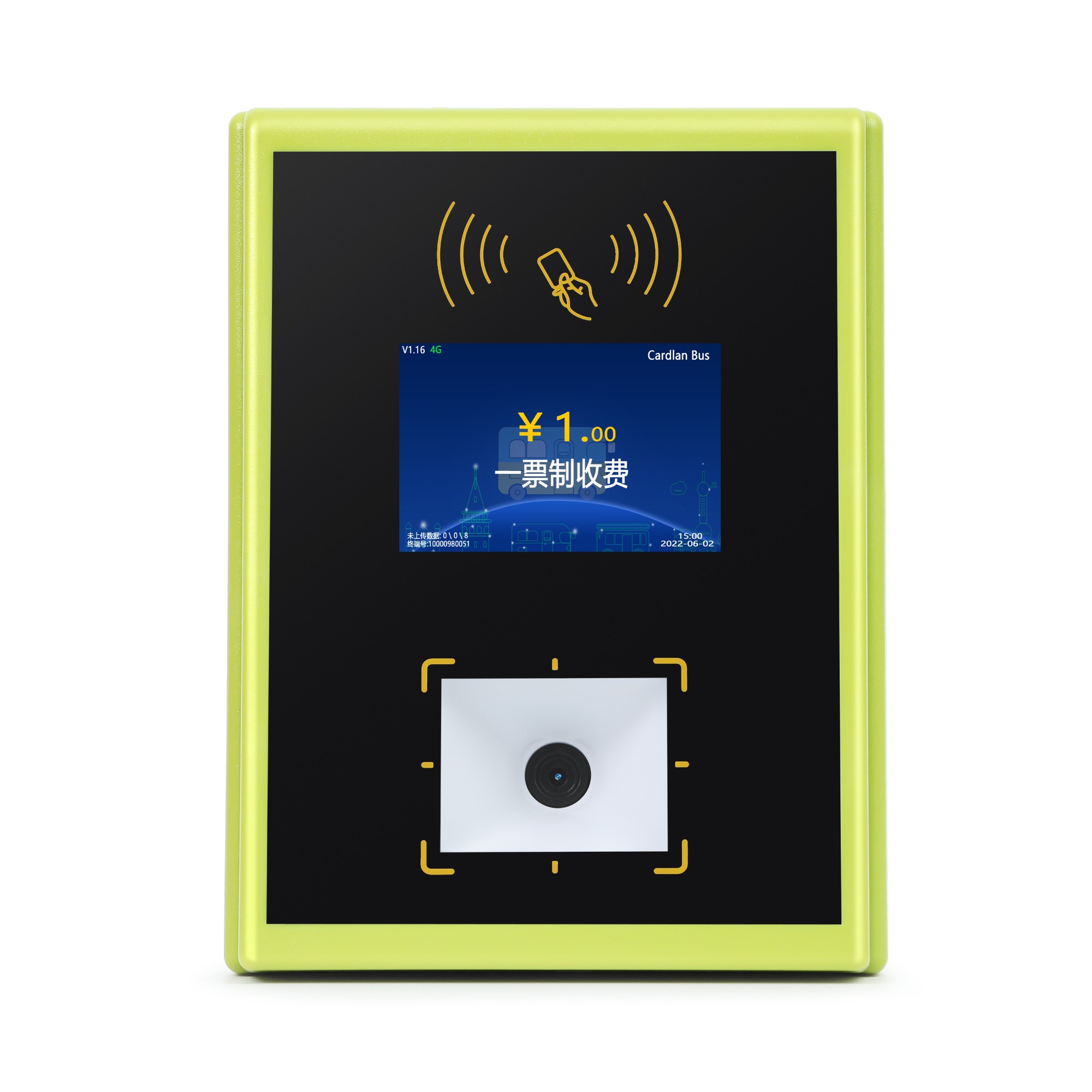

Display:
|
3.5 inch LCD display，320x240
|
|
Operating system:
|
Linux 2.6 system
|
|
CPU:
|
N32905 processor，ARM9 core @ 240MHZ
|
|
Memory:
|
32MBytes SDRAM，512MB NANDFlash
|
|
Data capacity:
|
259840 pcs of detailed data for console storage, unlimited data at GPRS storage
|
|
Card capacity:
|
91,880,000 pcs
|
|
Black list:
|
91,880,000 pcs (download thru PC with USB)
|
|
Working Voltage:
|
DC 8V-50V
|
|
Operating temperature:
|
-40℃~75℃
|
|
Storage temperature:
|
-45℃~85℃
|
|
Humidity:
|
0-95% RH non condensing
|
|
Lighting:
|
Red, Green light
|
|
Sound prompt:
|
Buzzer, single channel speaker (voice report)
|
|
Voice report prompt:
|
16KHz,16bit single channel voice report prompt
|
|
RFID:
|
Can read and write ISO14443 TYPE A\B Electronic tag (Incl. Combi-Card )
|
|
Read card distance:
|
0~50mm
|
|
Supporting card:
|
Mifare 1 card, Mifare DESfiire card,CPU card, UnionPay IC card
|
|
Frequency:
|
13.56MHz
|
|

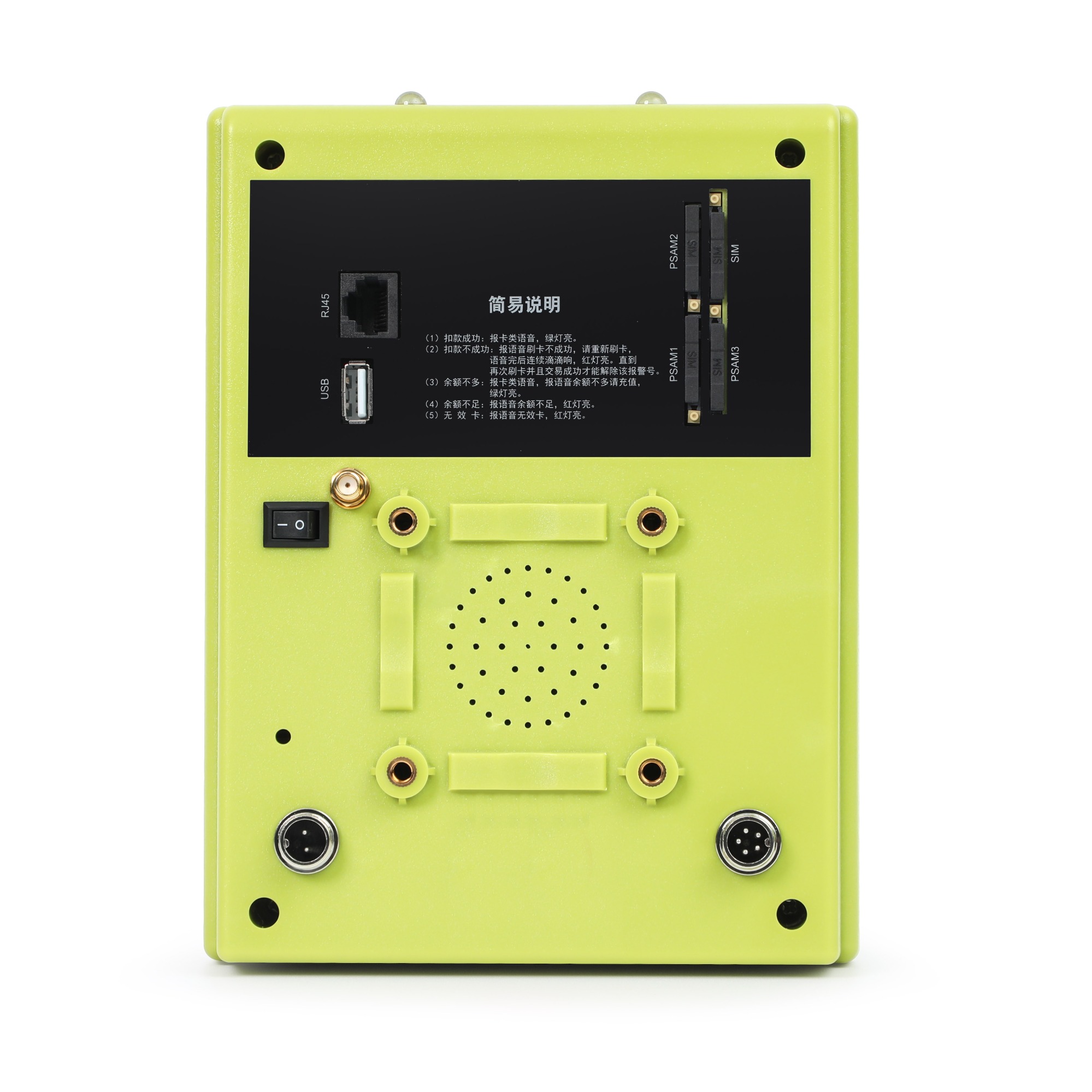

Interfaces/Connectors:
|
RS232, RS485, USB
|
|
Printer modules:
|
Can be connected to slip printer-POS58
|
|
Width of receipt:
|
Based on printer configuration
|
|
Positioning mode:
|
GPS
|
|
Power consumption:
|
≤10W
|
|
Communication Modules:
|
4G
|
|
WIFI：
|
Supporting 802.11n/b/g standards,150Mbps,2.4Ghz
|
|
UnionPay:
|
Compatible for PBOC3.0 UnionPay card
|
|
Upgrading:
|
Connect USB to PC, upgrade with GPRS
|
|
Data collection:
|
WIFI, GPRS,3G,4G, USB
|
Reliable Ticketing with Multiple Connectivity Options
The NFC card validator offers high performance for ticketing applications, featuring Bluetooth, WiFi, and 4G connectivity. Ideal for various environments, this smart card reader ensures quick and secure transactions. Its compact design supports efficient access control and ticket validation in real-time, perfect for public transportation, event venues, and POS systems. Its diverse connectivity options make it a versatile choice for businesses seeking seamless integration into existing systems, while the ability to process NFC cards ensures wide compatibility.
All-in-One POS Integration
Equipped with Bluetooth, WiFi, and 4G connectivity, the NFC card validator easily integrates into existing point-of-sale (POS) systems. This card reader provides fast processing speeds for ticket validation and customer access control. The 4G connectivity ensures real-time updates without relying on fixed-line networks, making it ideal for environments where mobile connectivity is essential. The ease of integration with current POS systems improves operational efficiency, reducing transaction times and enhancing customer satisfaction.
User-Friendly and Secure Access Control
Designed for ease of use, the NFC card validator simplifies the ticket validation process. It’s ideal for use in crowded areas or where quick validation is needed. The device's secure NFC technology ensures that each transaction is validated quickly and accurately, minimizing the risk of errors. Its compact design means it can be placed in a variety of locations without taking up too much space, while the 4G functionality ensures continuous data updates, providing consistent performance even in challenging environments.
Product Advantages
Multi-Network Connectivity for Flexibility
The NFC card validator offers seamless communication through multiple connectivity options: Bluetooth, WiFi, and 4G. This multi-network flexibility ensures the smart card reader can be deployed in various environments, from public transport systems to large venues with fluctuating network conditions. By offering 4G connectivity, the device ensures that ticket validation data is instantly updated, even in areas with limited WiFi access. This allows for fast, real-time processing and better overall service delivery.
Compact and Durable Design
The NFC card validator is built with a robust and compact design that is ideal for both indoor and outdoor applications. Its durability ensures reliable performance in high-traffic areas where continuous use is expected. The device is specifically engineered to withstand physical wear and tear, making it suitable for public transportation and other high-demand environments. Its small footprint allows for easy installation and integration into any setup without taking up valuable space.
Advanced NFC Technology for Secure Transactions
At the heart of the NFC card validator is advanced NFC technology that ensures secure and accurate ticket validation. This technology minimizes fraud risks and guarantees fast, touchless transactions. The card reader can read a wide variety of NFC-enabled cards, enhancing its usability across different ticketing systems and ensuring compatibility with existing infrastructure. This secure, seamless experience promotes customer trust and streamlines operations.
About Us
CARDLAN is a leading provider of smart ticketing and access control solutions, offering innovative products for public transport, event venues, and retail industries. Established with a focus on providing high-quality and reliable solutions, we specialize in card readers and card validators that meet the evolving needs of businesses. Our team is dedicated to delivering cutting-edge technology that ensures seamless integration and secure operations. We offer extensive R&D, production, and testing capabilities to ensure that each product meets the highest standards of quality and performance. Our solutions are designed to enhance efficiency, reduce downtime, and improve customer experience across various industries.
FAQ
What types of smart cards are compatible with the NFC card validator?
The NFC card validator is compatible with a wide variety of NFC-enabled smart cards, ensuring broad compatibility with most ticketing and access control systems.
How does the NFC card validator connect to existing systems?
The NFC card validator offers multiple connectivity options, including Bluetooth, WiFi, and 4G, allowing seamless integration with existing POS systems and access control setups.
Can the NFC card validator handle high-volume transactions?
Yes, the NFC card validator is designed for high-efficiency processing, handling large volumes of transactions quickly and accurately, making it ideal for high-traffic areas like public transport systems or events.
Is the NFC card validator suitable for outdoor environments?
Yes, the NFC card validator is built to withstand a range of environmental conditions, making it suitable for both indoor and outdoor use in various industries, including public transport and events.
How is the NFC card validator powered?
The NFC card validator can be powered via multiple methods, including direct connection to power sources through its POS integration, making it versatile for a range of deployment scenarios.
