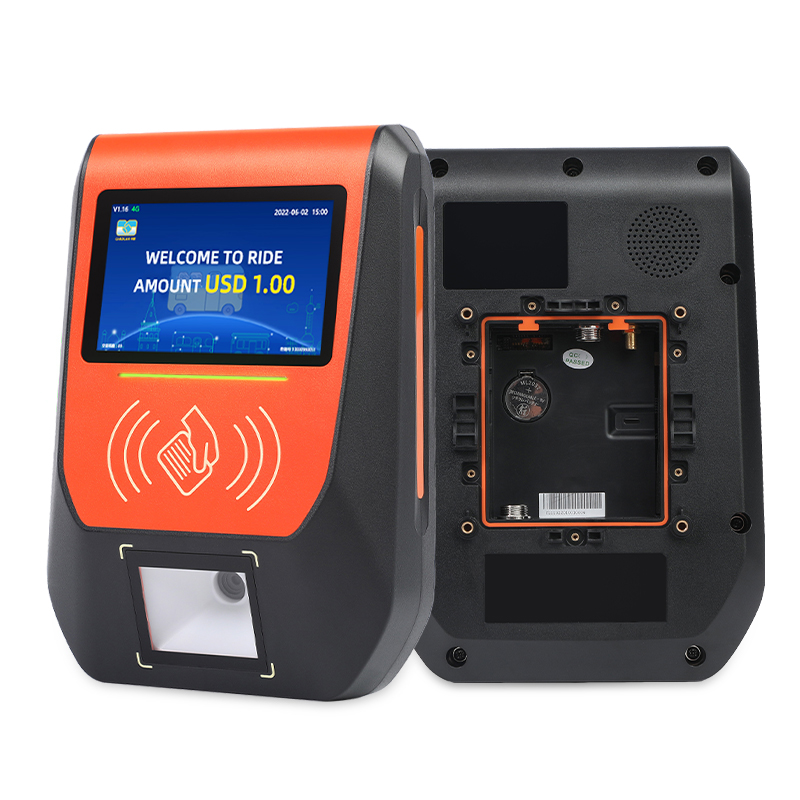

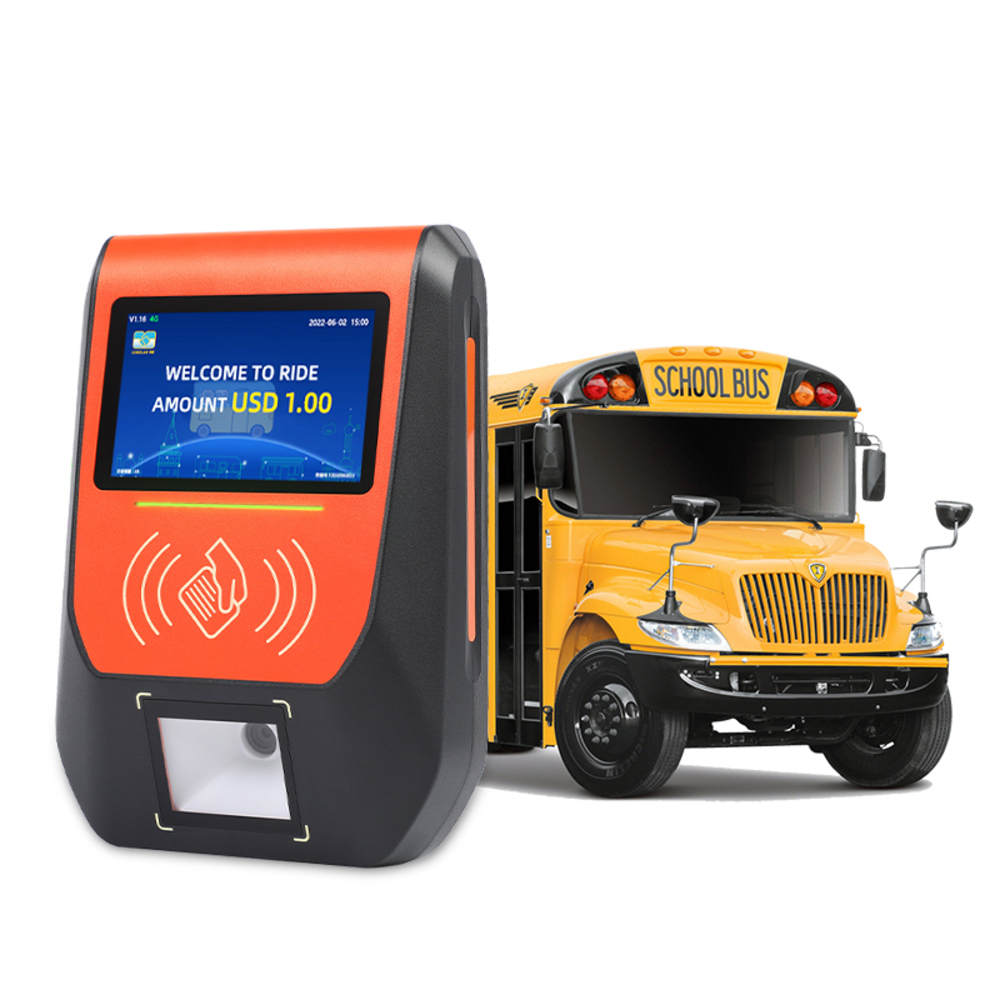

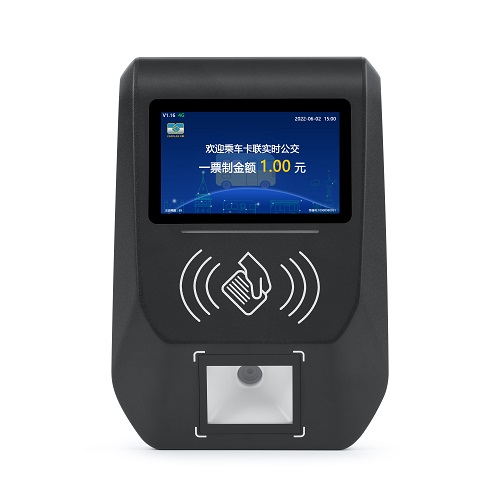

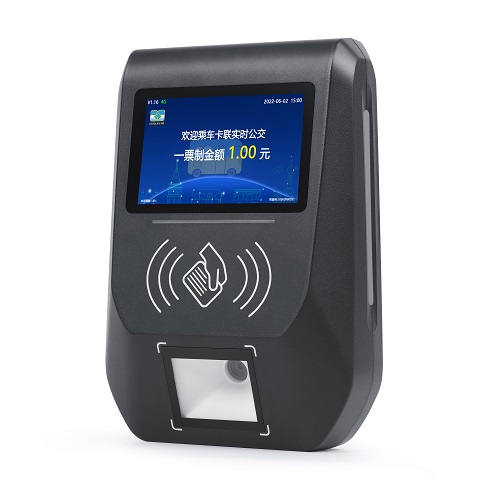

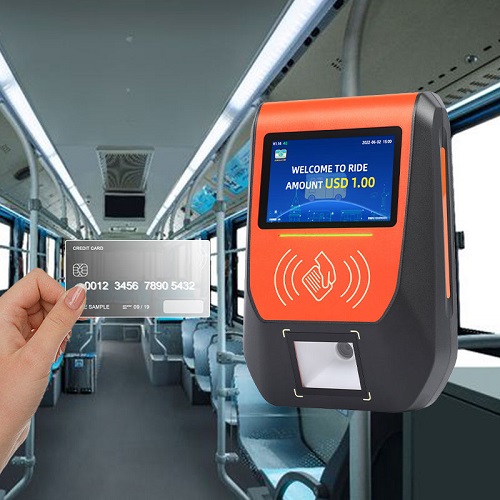

CL-A0618B smart bus validator can support RFID card, with GPS positioning module, support GPRS, WIFI wireless communication etc. Can be used for electronic payment or card validation in following field：
l Support wireless communication, remote connect to server management software to realize real time time-revision, black-list downloading and data collection etc.
l Support live voice prompts, supports 15 kinds of voice prompts: such as "student card", "employee card"
l Support consumption details and statistics query, according to card No., time, operator No., etc.
Parameter
|
Name：
|
Smart Bus Validator
|
|
Operating System：
|
Android5.1
|
|
CPU：
|
Quad-core cortex-a9 main frequency 1.4GHz、integrated GPU Mali-400 MP4
|
|
RAM
|
DDR3 1G（default）
|
|
Memory：
|
eMMC 16G（default）、Max support 64G TF card
|
|
Memory Function
|
|
|
Data Capacity：
|
more than 2 million detailed data for console storage, extensible
|
|
Blacklist：
|
Two hundred million，extensible, more with TF card
|
|
Working Environment
|
|
Working Temperature:
|
-25℃~65℃
|
|
Storage Temperature:
|
-40℃~85℃
|
|
Working Humidity:
|
0-90%（non-condensing）
|
|
Physical Parameter
|
|
|
Dimension:
|
240x170x74.7mm
|
|
Housing material:
|
Engineering plastics
|
|
LCD Display
|
|
Display：
|
5 inch LCD display, 800*480
|
|
Indicator light：
|
Red and green
|
|
Camera
|
|
|
Scanning：
|
Wide angel/QR /customized
|
|
Distance：
|
0CM -15CM
|
|
Voice Prompt
|
|
|
Sound Prompt：
|
Buzzer、Single channel loudspeaker
|
|
Voice Prompt：
|
16KHz,16bit single channel voice prompt
|
|
Power Supply Specification
|
|
Working Voltage：
|
DC 8V-50V
|
|
RFID Function
|
|
Support Type：
|
Can read and write ISO14443 TYPE A\B Electronic tag
|
|
Reading Distance：
|
0~50mm
|
|
Working Frequency：
|
13.56Mhz
|
|
Card Capacity：
|
5,000,000 pcs
|
|
Card Type：
|
Mifare 1 card, CPU card, UnionPay IC card
|
|

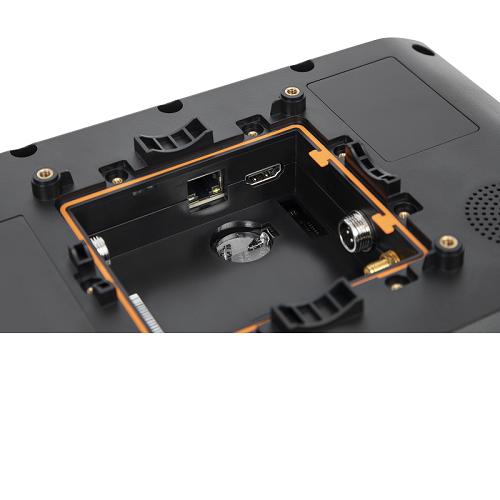

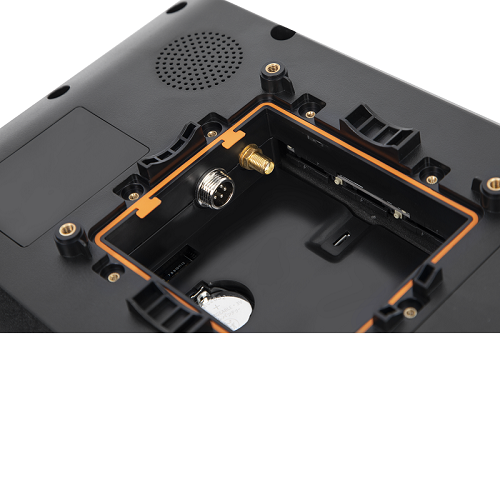

Interface
|
|
|
Communication Interface：
|
USB-HOST、USB-OTG、RS485 or TTL-232
|
|
Reserved interface:
|
HDMI
|
|
Printing Function
|
|
|
Printing module：
|
Support external POS58printer (need 5pinaviation plug turn DB9 cable)
|
|
Width of receipt:：
|
58mm
|
|
Positioning Function
|
|
|
Position way：
|
GPS, Beidou positioning (Optional)
|
|
Working Mode
|
|
|
Working Mode：
|
Stand-alone or connect to server
|
|
Power Consumption
|
|
|
Power Consumption:
|
≤10 W
|
|
Communication Function
|
|
Wireless Communication
|
GPRS.,3G,4G optional
|
|
WIFI
|
Support 802.11n/b/g standard,150Mbps,2.4Ghz
|
|
Warning Function
|
|
|
Warning Function
|
Warning when card balance is insufficient or data memory is full
|
|
Data Collection Function
|
|
Collection mode
|
2G、3G、4G and USB collection、WIFi and Bluetooth optional
|
High-Performance Card Validator

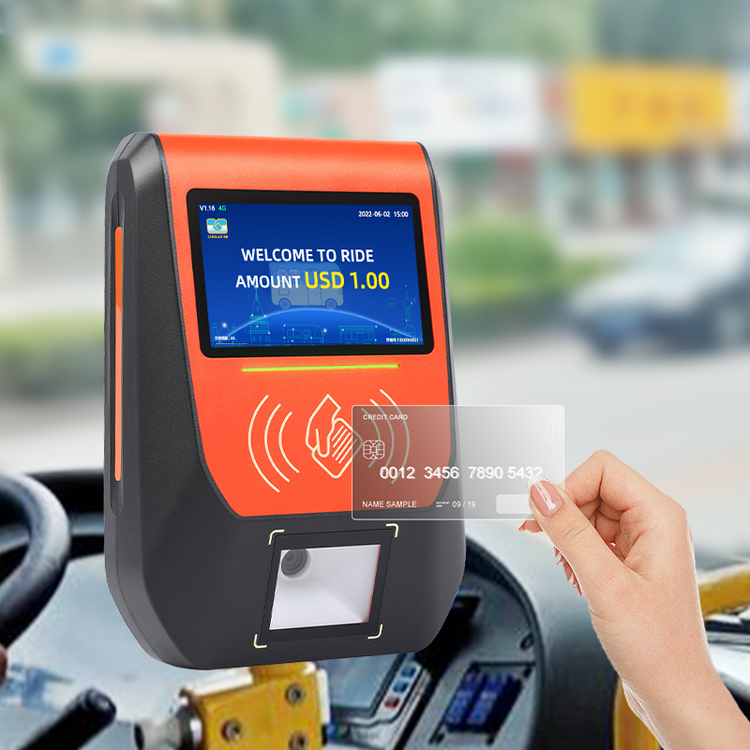

The CARDLAN Card Validator is built for quick and secure fare collection in public transportation systems. Designed to process a wide range of smart cards, the card validator enables passengers to validate their tickets with ease and speed. It supports various types of cards, including RFID, NFC-enabled, and contactless smart cards, making it versatile and adaptable to modern transit systems. With its smart card reader capability, the validator ensures secure, accurate, and fast ticketing, improving the overall passenger experience. Whether used in buses, trams, or metro systems, the card validator is an essential tool for ensuring smooth and efficient fare collection operations.
Versatile and Efficient Ticket Access Reader
The CARDLAN Card Validator integrates ticket access reader technology for multiple validation methods. This allows operators to accept a variety of ticketing options, from traditional contactless cards to the latest NFC mobile ticketing solutions. The device is built to be highly reliable, ensuring that ticket access reader functionality operates efficiently under high-volume conditions, making it ideal for transit systems with frequent passenger traffic. With the added benefit of quick validation times, transport systems can handle large numbers of passengers without delays, reducing congestion and improving overall service efficiency.
Seamless Integration with Existing Systems
The CARDLAN Card Validator can easily integrate into existing fare collection systems, making it ideal for modernizing public transport infrastructure. It supports various data transmission protocols and is designed to work seamlessly with a wide range of smart card reader technologies. Additionally, the card validator is compatible with backend management systems, allowing transport operators to monitor and manage ticketing data in real time. This integration capability makes the ticket access reader an essential component for smart, digital ticketing solutions in public transportation.
Product Advantages
Fast and Accurate Card Validator Performance
The CARDLAN Card Validator ensures that ticket validation is both fast and accurate. The card validator reads smart card data efficiently, allowing passengers to board vehicles quickly without unnecessary delays. This speed is especially beneficial during peak hours when congestion is common, ensuring smooth flow and reducing waiting times. The system’s accuracy ensures that tickets are validated correctly, helping prevent fare evasion and improving security across the transportation network.
Flexible and Multi-Functional Ticket Access Reader
With its ticket access reader functionality, the CARDLAN Card Validator supports a wide variety of ticketing methods, including RFID, NFC, and mobile ticketing solutions. This flexibility ensures that transport operators can accommodate the evolving needs of passengers, including those who prefer to use smartphones for ticketing. Whether it’s traditional plastic cards or mobile-based tickets, the ticket access reader provides a seamless experience for all passengers, ensuring that fare collection remains efficient and versatile.
Reliable and Robust Smart Card Reader
The CARDLAN Card Validator is built to withstand the rigorous demands of public transportation environments. As a smart card reader, the device is durable and resistant to wear and tear, ensuring long-term performance with minimal maintenance. It is designed to perform reliably in a variety of weather conditions, making it ideal for both indoor and outdoor use. Whether installed on buses, trains, or at stations, the card validator ensures consistent operation, reducing downtime and operational costs for transport authorities.
About Us
CARDLAN is a global leader in providing advanced smart ticketing solutions for the transportation industry. With years of experience in designing and manufacturing reliable card validators, smart card readers, and ticket access readers, we specialize in developing products that improve the efficiency and security of public transport systems. Our products, trusted by transit operators worldwide, offer seamless integration with existing infrastructures, making it easier for authorities to transition to smarter, contactless fare collection systems. At CARDLAN, we are committed to innovation, ensuring that our products meet the evolving needs of the transportation sector. Through constant research and development, we continue to provide solutions that enhance the passenger experience and optimize transit operations.
FAQ
What types of cards are supported by the CARDLAN Card Validator?
The CARDLAN Card Validator supports various types of contactless cards, including RFID cards and NFC-enabled cards, ensuring a wide range of compatibility with modern fare collection systems.
How does the smart card reader in the CARDLAN Card Validator work?
The smart card reader in the CARDLAN Card Validator allows passengers to tap their contactless cards or use mobile tickets for quick and secure validation, improving boarding efficiency.
Can the CARDLAN Card Validator be integrated with existing ticketing systems?
Yes, the CARDLAN Card Validator can easily be integrated with existing ticket access reader systems, providing a smooth transition for transport authorities looking to modernize their fare collection methods.
Is the CARDLAN Card Validator suitable for high-traffic environments?
Yes, the CARDLAN Card Validator is designed to handle high passenger volumes, making it ideal for use in busy transit systems like urban buses, metro lines, and rail networks.
What benefits does using a ticket access reader offer?
The ticket access reader in the CARDLAN Card Validator allows for quick, contactless fare collection, reducing passenger wait times and improving overall system efficiency.
