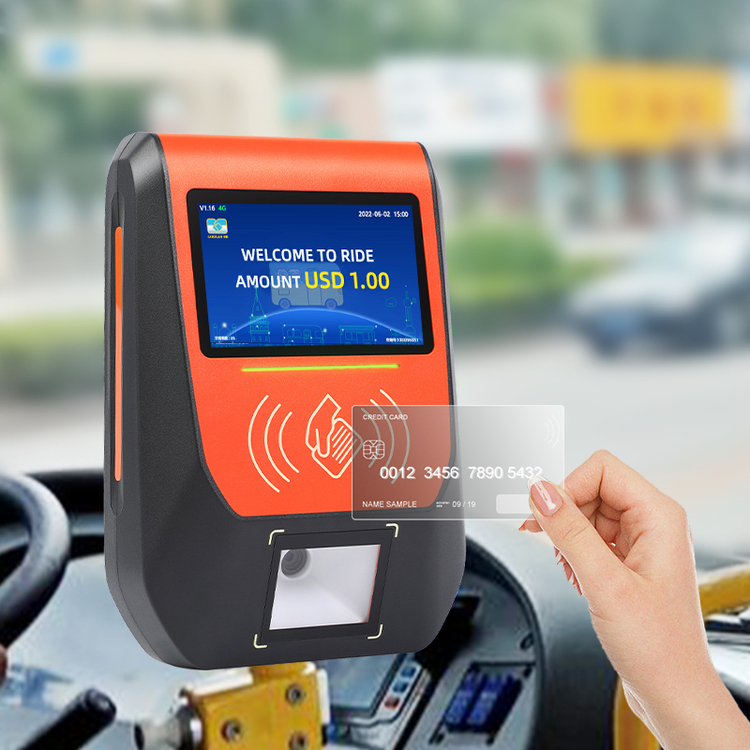

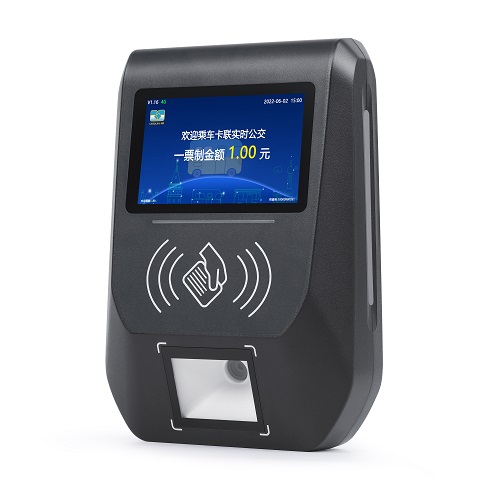

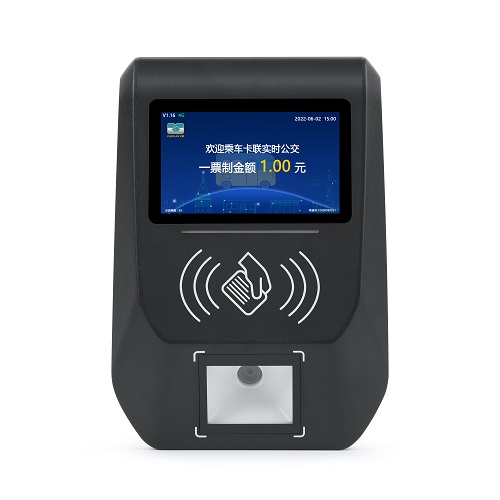

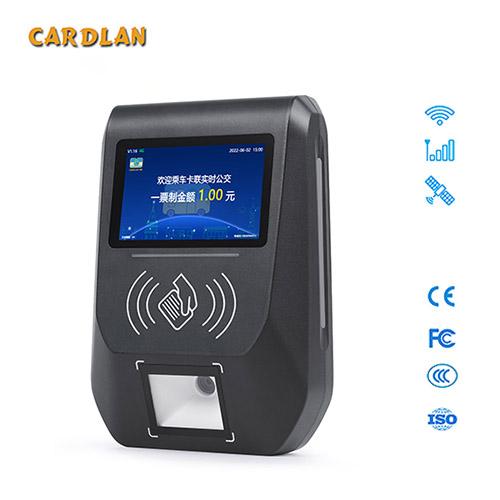

1. Application
CL-A0618 smart bus validator can support RFID card,with GPS positioning module and QR code scanner,support 4G,WIFI wireless communication etc.Can be used for electronic payment or card validation in following field：
l Public transport fare collection
l Scenic spots/amusement park card payment
l Balance inquiry
l Employee shuttle bus card validation
l Safety school bus system
2. Functional features
l Support wireless communication,remote connect to server management software to realize real time time-revision,black-list downloading and data collection etc.
l Support data real time uploading or USB local data collection
l Support live voice prompts, supports 15 kinds of voice prompts：such as"student card","employee card"
l Support consumption details and statistics query,according to card No.,time,operator No.,etc.
Parameter
|
Name：
|
Smart Bus Validator
|
|
Operating System：
|
Android5.1
|
|
CPU：
|
Quad-core cortex-a9 main frequency 1.4GHz、integrated GPU Mali-400 MP4
|
|
RAM
|
DDR3 1G（default）
|
|
Memory：
|
eMMC 16G（default）、Max support 64G TF card
|
|
Memory Function
|
|
|
Data Capacity：
|
more than 2 million detailed data for console storage, extensible
|
|
Blacklist：
|
Two hundred million，extensible, more with TF card
|
|
Working Environment
|
|
Working Temperature:
|
-25℃~65℃
|
|
Storage Temperature:
|
-40℃~85℃
|
|
Working Humidity:
|
0-90%（non-condensing）
|
|
Physical Parameter
|
|
|
Dimension:
|
240x170x74.7mm
|
|
Housing material:
|
Engineering plastics
|
|
LCD Display
|
|
Display：
|
5 inch LCD display, 800*480
|
|
Indicator light：
|
Red and green
|
|
Camera
|
|
|
Scanning：
|
Wide angel/QR /customized
|
|
Distance：
|
0CM -15CM
|
|
Voice Prompt
|
|
|
Sound Prompt：
|
Buzzer、Single channel loudspeaker
|
|
Voice Prompt：
|
16KHz,16bit single channel voice prompt
|
|
Power Supply Specification
|
|
Working Voltage：
|
DC 8V-50V
|
|
RFID Function
|
|
Support Type：
|
Can read and write ISO14443 TYPE A\B Electronic tag
|
|
Reading Distance：
|
0~50mm
|
|
Working Frequency：
|
13.56Mhz
|
|
Card Capacity：
|
5,000,000 pcs
|
|
Card Type：
|
Mifare 1 card, CPU card, UnionPay IC card
|
|

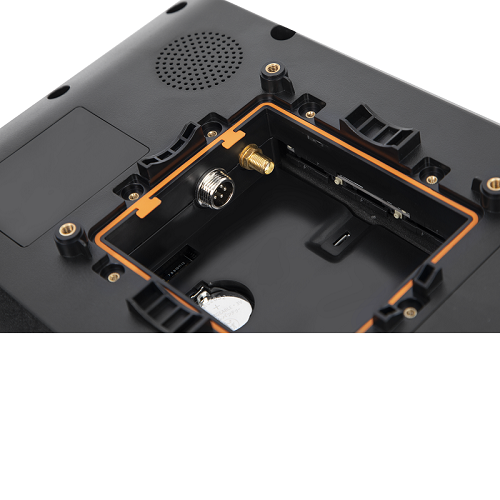

Interface
|
|
|
Communication Interface：
|
USB-HOST、USB-OTG、RS485 or TTL-232
|
|
Reserved interface:
|
HDMI
|
|
Printing Function
|
|
|
Printing module：
|
Support external POS58printer (need 5pinaviation plug turn DB9 cable)
|
|
Width of receipt:：
|
58mm
|
|
Positioning Function
|
|
|
Position way：
|
GPS, Beidou positioning (Optional)
|
|
Working Mode
|
|
|
Working Mode：
|
Stand-alone or connect to server
|
|
Power Consumption
|
|
|
Power Consumption:
|
≤10 W
|
|
Communication Function
|
|
Wireless Communication
|
GPRS.,3G,4G optional
|
|
WIFI
|
Support 802.11n/b/g standard,150Mbps,2.4Ghz
|
|
Warning Function
|
|
|
Warning Function
|
Warning when card balance is insufficient or data memory is full
|
|
Data Collection Function
|
|
Collection mode
|
2G、3G、4G and USB collection、WIFi and Bluetooth optional
|
Advanced Smart Card Validation Technology
The CARDLAN Smart Card Reader integrates state-of-the-art card validator technology, allowing for efficient, fast, and secure card validation in a variety of ticketing applications. This compact device is capable of reading a wide range of smart cards, ensuring compatibility with most card types used in modern access control and payment systems. Whether in public transit or POS environments, its high-precision sensors and robust design guarantee optimal performance. The smart card reader can easily integrate with existing systems, making it a versatile solution for various industries that require secure and accurate card authentication. This ensures that users experience fast and reliable transactions without delays or errors.
Seamless Integration for POS and Access Systems
Designed for use in ticketing and access control systems, the CARDLAN Smart Card Reader offers easy integration with POS ticketing systems and access terminals. Its versatile design ensures it works with a variety of smart card formats, including NFC, RFID, and contact-based cards. Ideal for environments such as public transport, retail, and amusement parks, this device simplifies both customer and employee interactions, providing a smooth user experience. The ticket access reader also supports contactless payments, streamlining transaction times and reducing the risk of physical contact, which is crucial for high-traffic areas. Its durable, long-lasting construction means it can withstand frequent use in demanding environments.
Durable, Reliable, and User-Friendly Design
The CARDLAN Smart Card Reader is engineered for durability and reliability in even the most demanding environments. With a user-friendly interface and easy installation process, it reduces the complexity of managing smart card access systems. The device’s robust build ensures that it continues to perform optimally over time, even in harsh conditions. Designed with flexibility in mind, this card reader is adaptable to both fixed and mobile stations. Whether you're managing bus ticketing systems or POS terminals, the card validator ensures that access and payments are processed efficiently, improving both speed and user satisfaction.
Product Advantages
1. High Precision and Fast Performance
The CARDLAN Smart Card Reader excels in providing high-speed and precise card validation. This advantage is particularly valuable in environments where quick transaction times are essential, such as public transportation systems and busy retail points of sale. The device’s advanced card reader technology ensures that even the most complex cards are read quickly and accurately, reducing waiting times and improving operational efficiency. Whether it's for cashless bus payments or ticketing systems, this ticket access reader minimizes delays, making it ideal for high-volume environments.
2. Wide Compatibility with Card Types
One of the standout features of the CARDLAN Smart Card Reader is its compatibility with a wide variety of smart cards, including both contactless and contact-based types. This feature ensures that the card validator can be seamlessly incorporated into diverse ticketing systems without the need for additional hardware upgrades. The device supports multiple communication protocols, making it suitable for use in everything from transportation ticketing to access control in secure areas. With its versatility, it serves a broad range of industries and applications, ensuring an efficient solution for both customers and businesses.
3. Security and Durability for Long-Term Use
Security is paramount in any access or payment system, and the CARDLAN Smart Card Reader is built to provide robust, secure card authentication. The device is equipped with advanced encryption and security features that ensure user data remains protected during each transaction. Additionally, its durable design makes it perfect for constant use in high-demand environments, withstanding the wear and tear of daily operations. Whether you're dealing with ticket access readers in bus stations or card readers in retail environments, this product offers peace of mind with its long-lasting reliability.
About Us
CARDLAN, established with a deep commitment to innovation and technology, is a leading provider of smart card solutions for various industries, including transportation, retail, and secure access. Our products, such as the smart card reader and card validator, are designed to simplify and secure access and payment systems across the globe. With years of industry expertise and a focus on quality, CARDLAN has built a reputation for delivering reliable and cutting-edge solutions that meet the growing needs of businesses and consumers. Our advanced R&D and manufacturing capabilities allow us to produce high-performance devices that ensure seamless integration with existing infrastructures, providing cost-effective and scalable solutions. We prioritize customer satisfaction and continue to drive forward the development of smart card technologies that enhance convenience and security for users worldwide.
FAQ
What types of cards can the CARDLAN Smart Card Reader validate?
The CARDLAN Smart Card Reader is compatible with a wide range of smart cards, including contactless and contact-based cards, making it suitable for a variety of applications such as ticket access and POS systems.
Is the CARDLAN Smart Card Reader easy to integrate with existing systems?
Yes, the card validator is designed for seamless integration with existing ticketing and access control systems, ensuring minimal setup time and maximum compatibility.
Can the CARDLAN Smart Card Reader be used for both transit and retail applications?
Absolutely! The CARDLAN Smart Card Reader is versatile and can be used in both public transportation systems for ticket access and in retail environments for POS systems.
How secure is the CARDLAN Smart Card Reader for transactions?
The CARDLAN Smart Card Reader incorporates advanced encryption technologies to ensure that all transactions, whether in ticket access or POS systems, are secure and protected.
What is the lifespan of the CARDLAN Smart Card Reader?
Designed for durability, the card reader is built to last, ensuring long-term use in high-traffic environments like transit stations and retail locations.
